12x20 Gambrel Shed Plans

$9.99
$9.99
myoutdoorplans

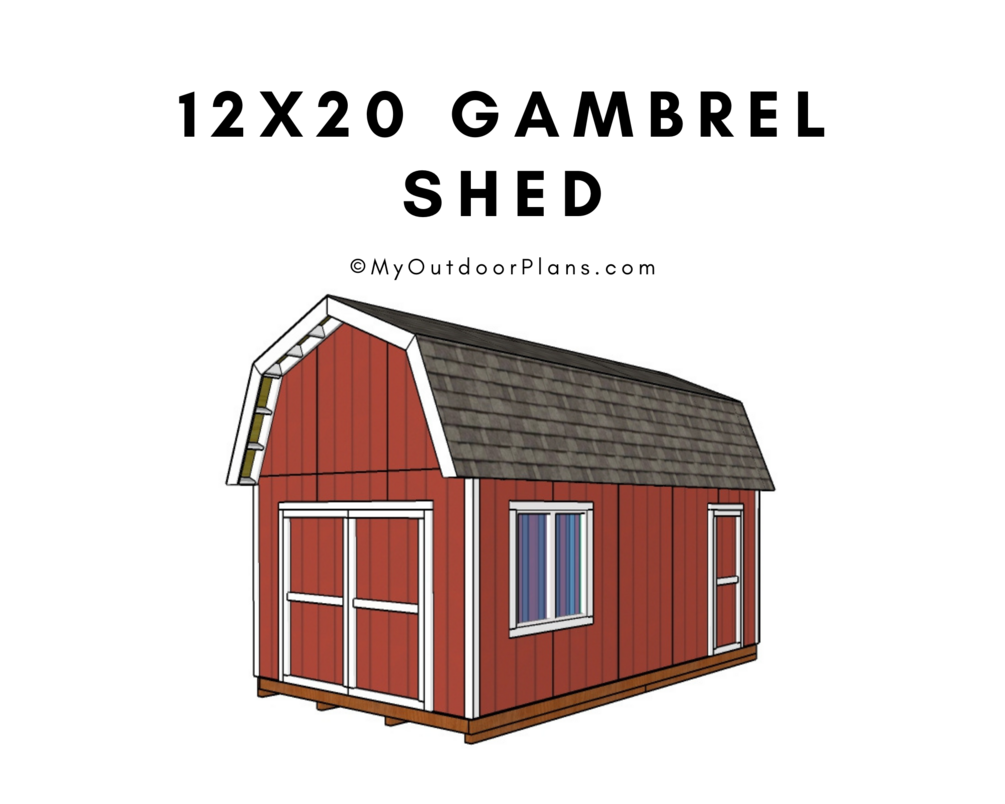

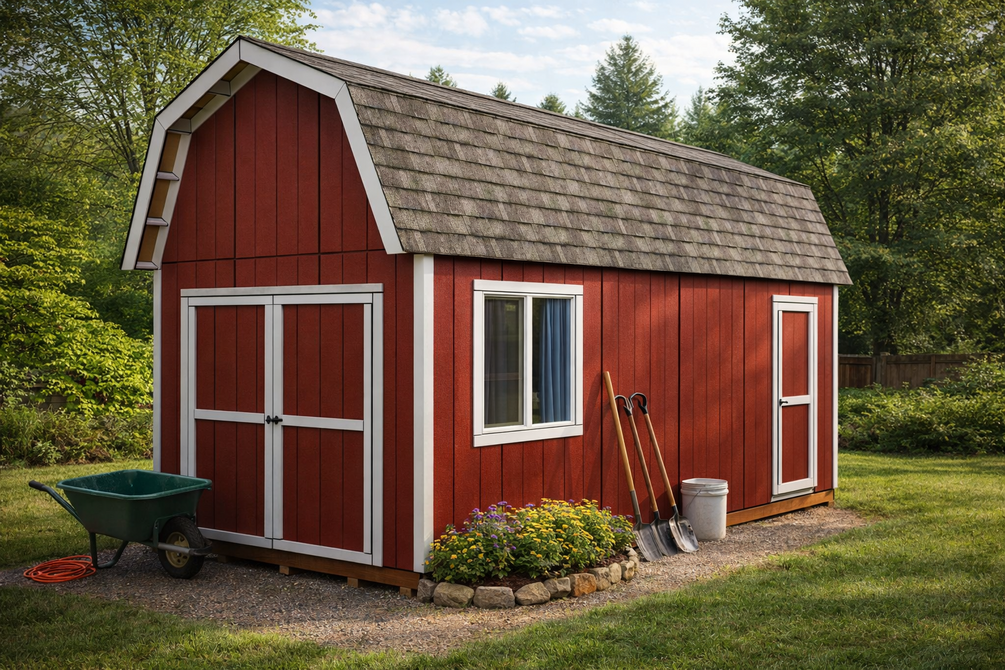

If you want to build a beautiful 12x20 garden shed with a gambrel roof, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a weekend. This shed is built on a sturdy 2x4 framing, with studs every 16" on center.

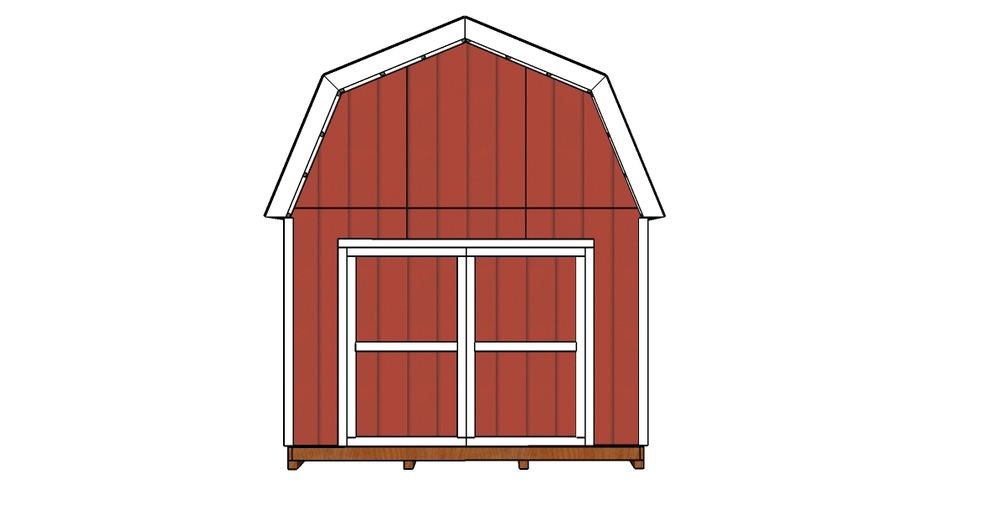

The shed features double 8' front doors, a side 4'x4' window and a side door 32"x80". The plans are designed with efficiency in mind, so you won't waste materials.

In addition, just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects! A list with all the tools that are needed is also present, along with Full Cut, Shopping lists and Cut Diagram Layout.


PREMUM PLANS with Cut Layout Diagrams (shows you how to cut the beams, so you get the least amount of waste) and Color Code (components in different colors, so you identify them easily when assembling)!

*These are PREMIUM PLANS

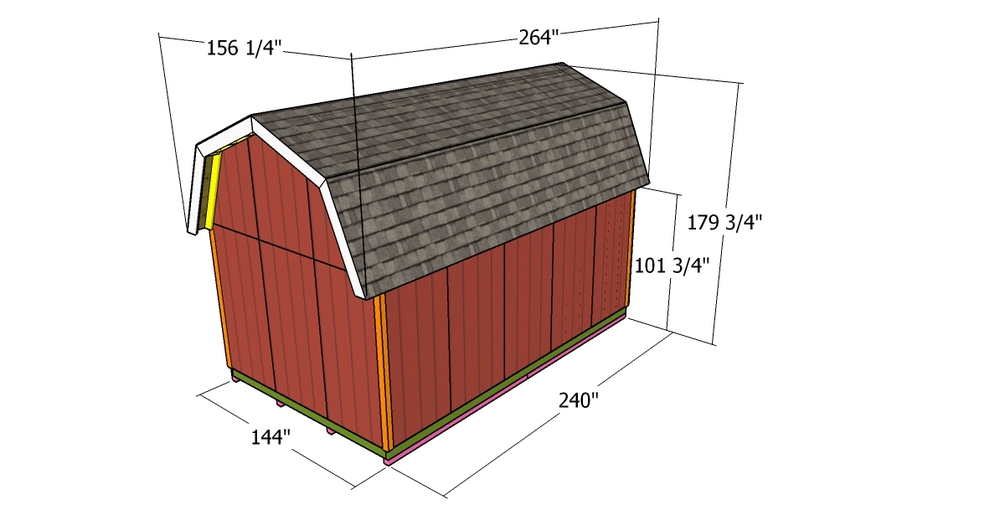

*See full dimensions in the FEATURED IMAGES.

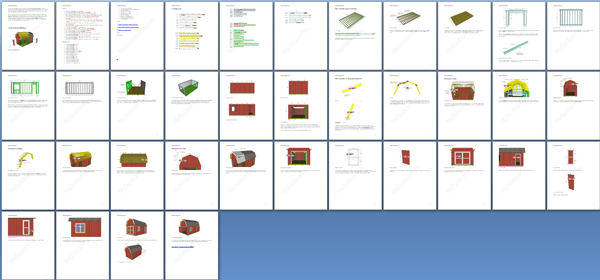

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Cut Layout Diagrams
  • Tools List, Time & Cost Estimate


Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Size
    1.94 MB
  • Length
    37 pages
  • Size1.94 MB
  • Length37 pages
