20x24 Gable Shed Plans

0 ratings

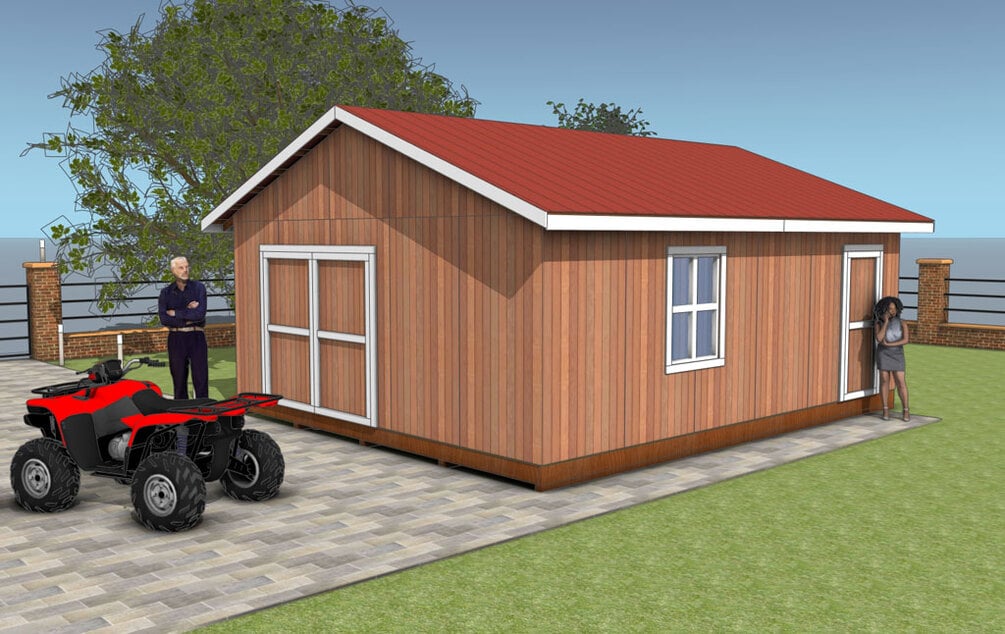

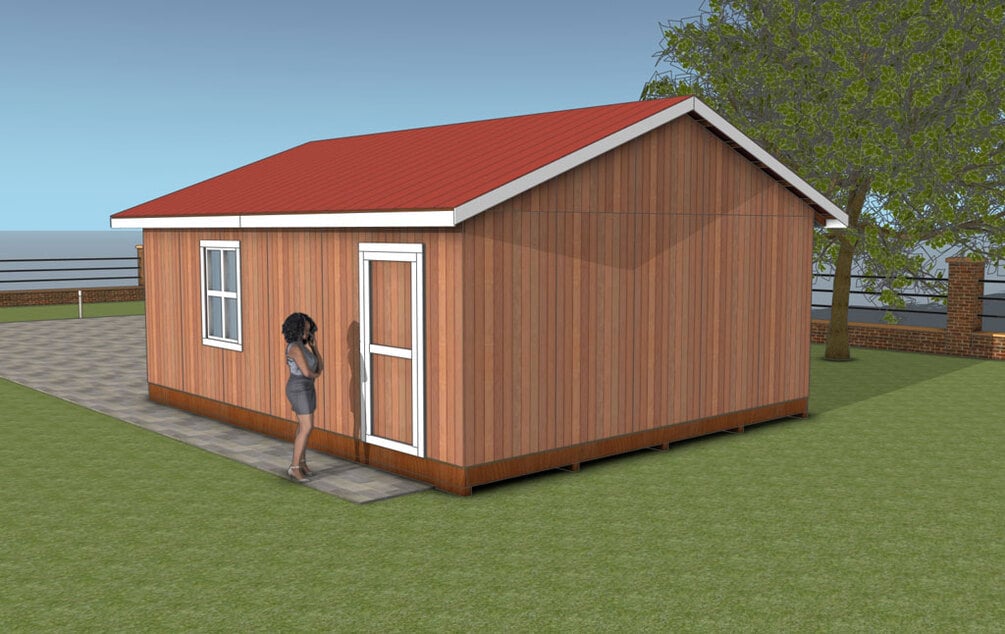

If you want to build a beautiful 20x24 gable shed, I have you covered with detailed plans. The shed is built on sturdy 2x6 floor framing and it features double 8 ft doors to the front and a 3 ft side door. The shed also has a large 3'x4' window to the side to let some natural light inside. The shed is built on trusses and it features a metal roofing with 2x4 purlins.

You need large boards for this shed: 2x4 at 24 ft, 2x4 at 20 ft. Make sure you have access to lumber before buying the plans.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!


*See full dimensions in the FEATURED IMAGES.

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Tools List, Time & Cost Estimate
  • Measurements are in imperial

Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Payment is managed by Gumroad and it is safe. Payment is secured by SSL with 128-bit encryption and processed with PCI Compliant service providers. Find out moreĀ here.
  • Once payment is completed, you will receive an email from Gumroad (look in spam folder as well). Inside the email you have a VIEW CONTENT button. Press the button, then Download.
I want this!
5.46 MB
21 pages
