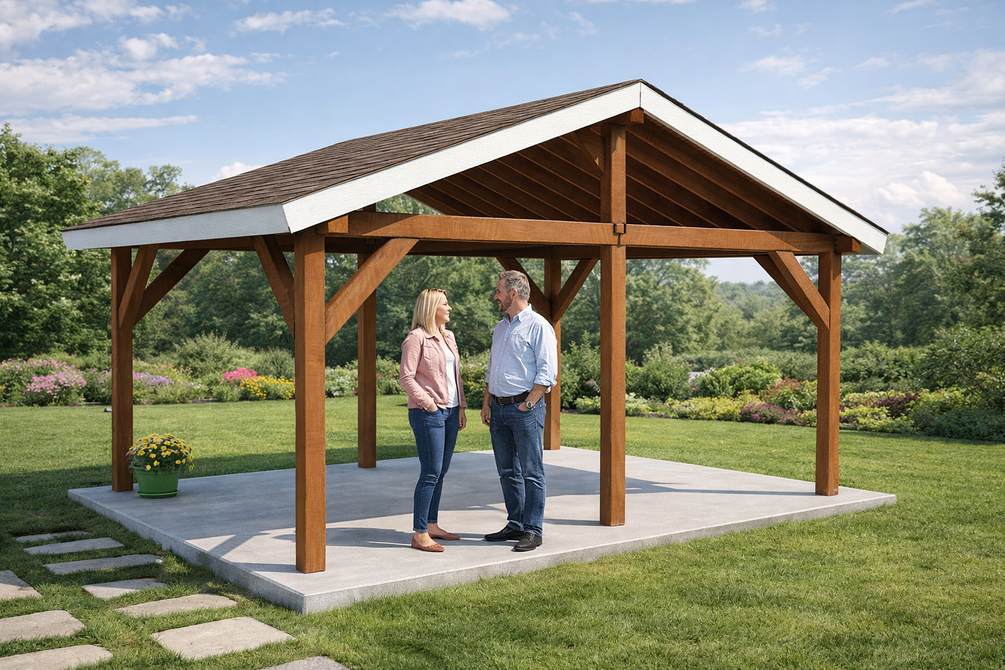

If you want to build a beautiful 20x14 outdoor pavilion with gable roof, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a week. This large wooden pavilion is built on a sturdy 6x6 and 6x8 framing, with 2x8 rafters every 16" on center.

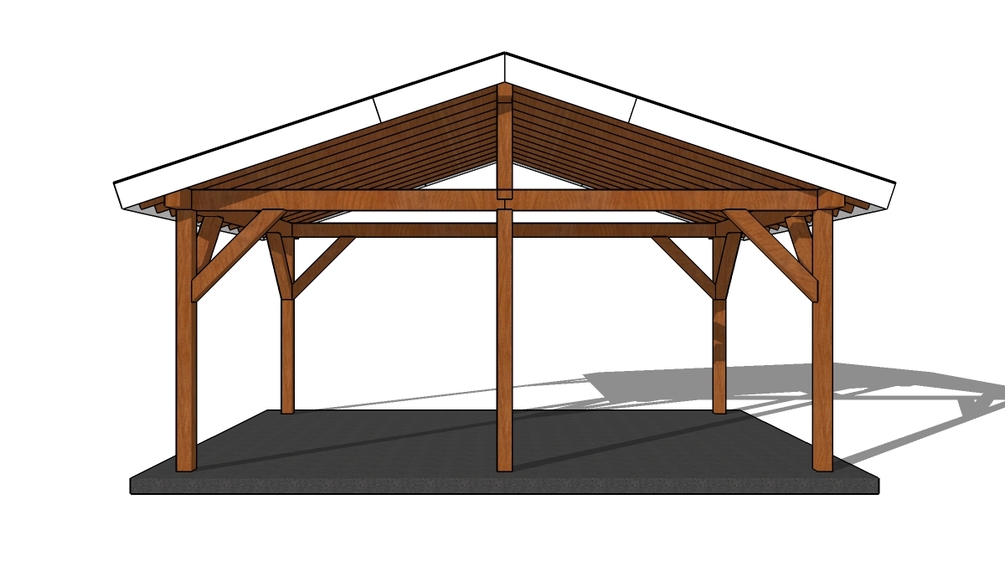

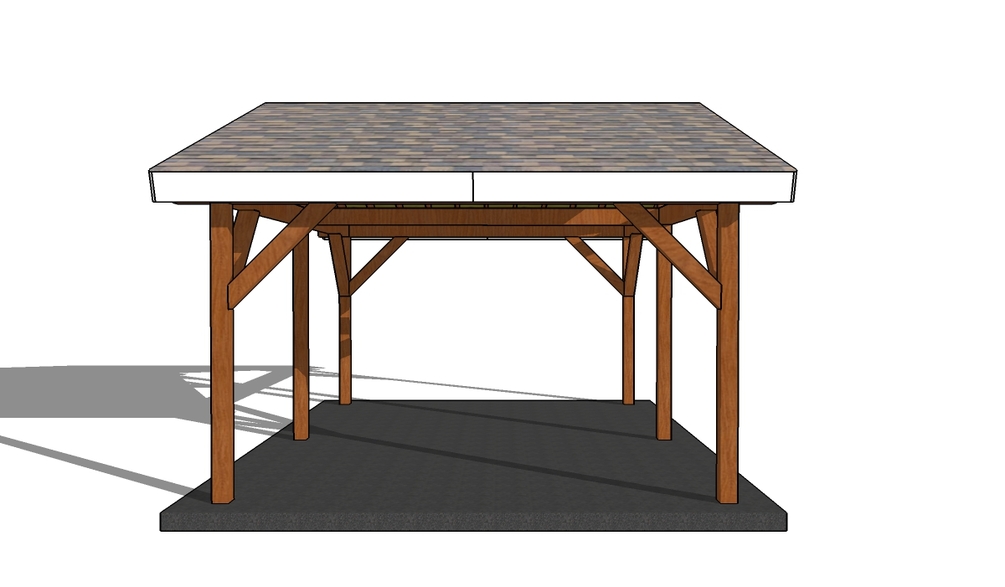

The pavilion features a gable roof with a 4:12 pitch with generous overhangs on all sides. The base of the pavilion is 20'x14'. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.
Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!
*These are PREMIUM PLANS

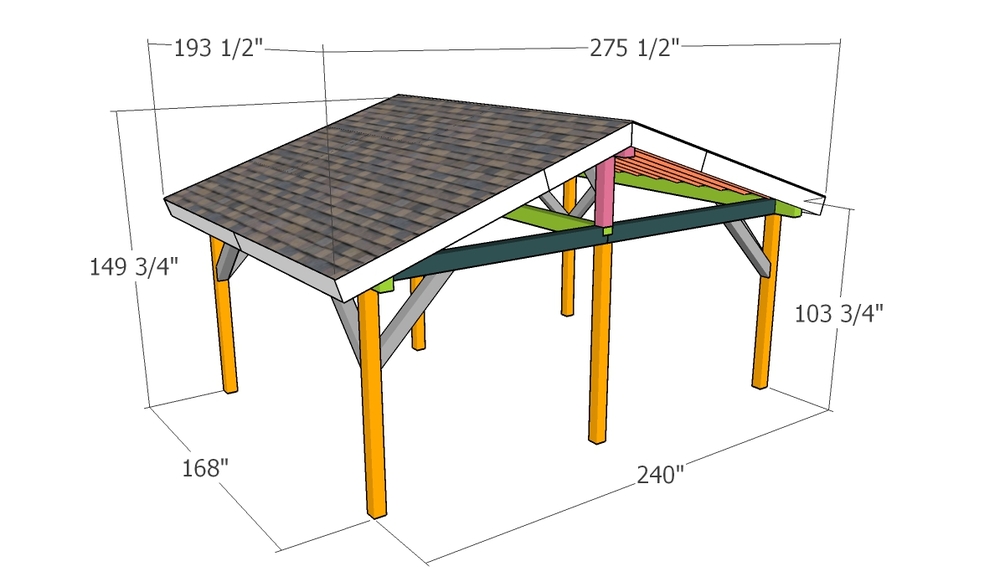

*See full dimensions in the FEATURED IMAGES.

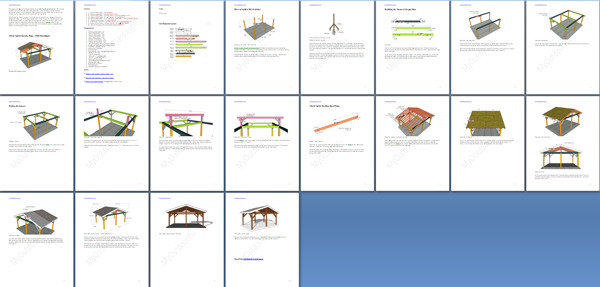

The PDF file comes with:
- Cut Diagrams, Parts Lists
- 3D diagrams with detailed step by step instructions
- Full Cut & Shopping lists
- Cut Layout Diagrams
- Tools List, Time & Cost Estimate
- Measurements are in imperial
Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
- Size1.28 MB
- Length20 pages
