16x16 Gable Shed Plans

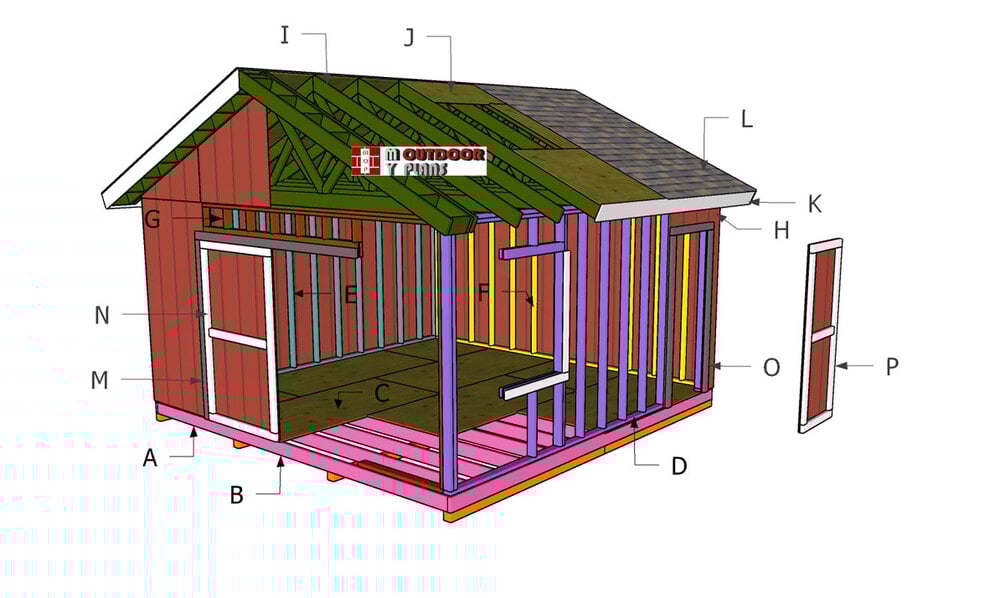

If you want to build a beautiful 16x16 garden shed with a gable roof, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a weekend. This large shed is built on a sturdy 2x4 framing, with studs every 16" on center.

The shed features a 8 double doors to the front, a side 32"x48" windows and a 32" wide side door. The plans are designed with efficiency in mind, so you won't waste materials. The roof has a 25 degree slope.

The floor of the shed is built on 4x4 skids, so you protect it from the elements and make it more durable.

The plans come with a shed ramp and a window planter included!! The shed ramp will open up this project to new possibilities. You can for example use this as a hobby center to relax during the weekends.

In addition, just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects! A list with all the tools that are needed is also present, along with Full Cut, Shopping lists and Cut Diagram Layout.


*See full dimensions in the FEATURED IMAGES.

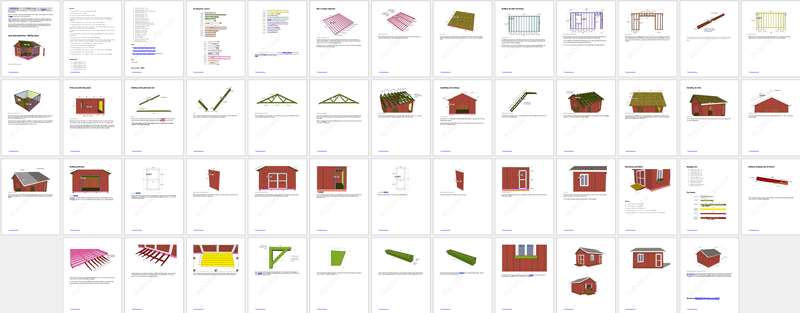

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Cut Layout Diagrams
  • Tools List, Time & Cost Estimate

Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Payment is managed by Gumroad and it is safe. Payment is secured by SSL with 128-bit encryption and processed with PCI Compliant service providers. Find out more here.
  • Once payment is completed, you will receive an email from Gumroad (look in spam folder as well). Inside the email you have a VIEW CONTENT button. Press the button, then Download.
I want this!
2.98 MB
50 pages
