12x30 Gable Pavilion Plans

$11.99

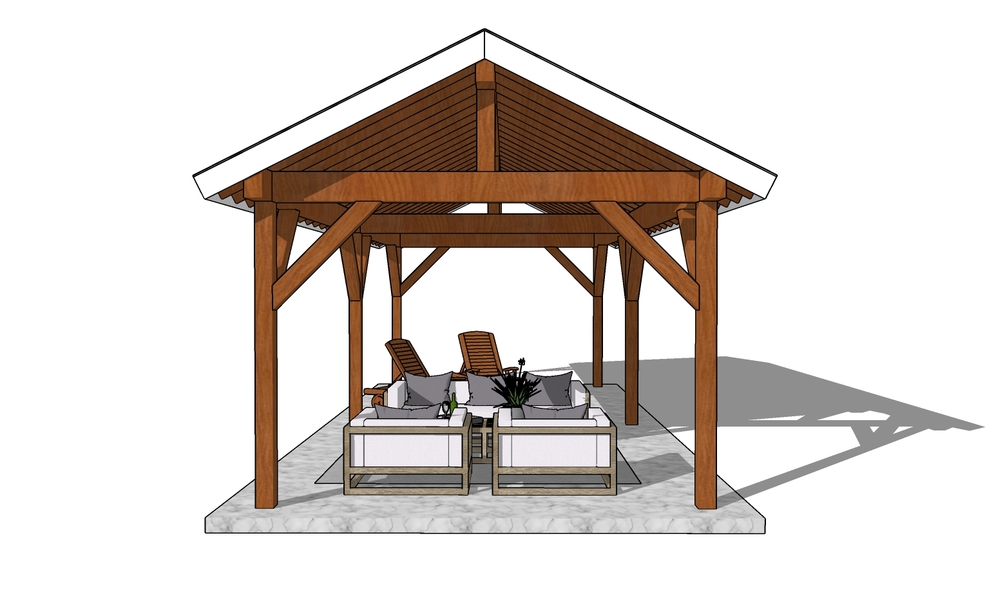

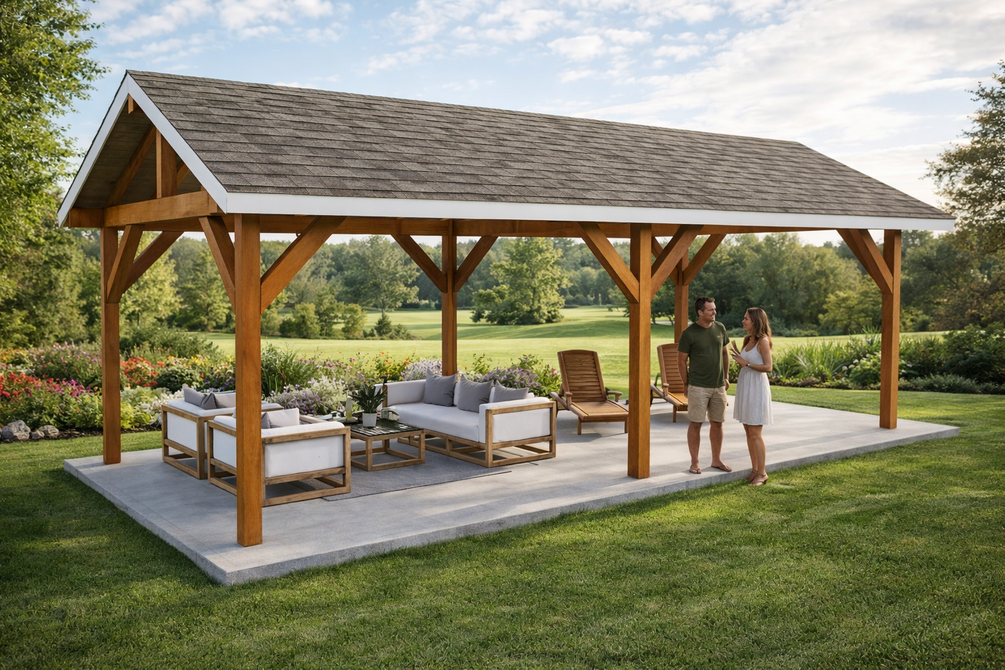

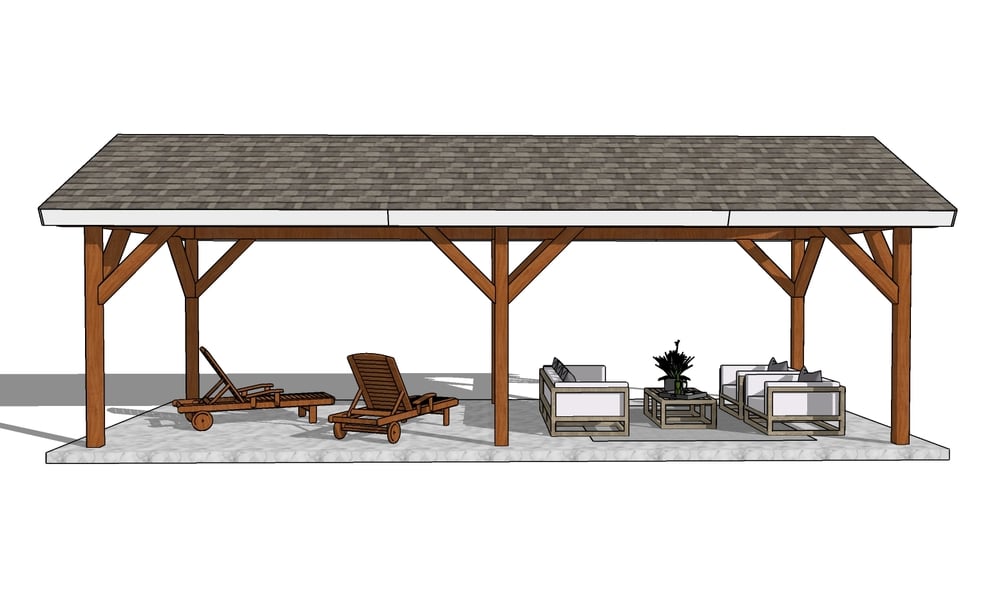

This step by step diy woodworking project is about a 12x30 gable pavilion plans. This is a large pavilion built on a sturdy 6x6 and 6x10 framing, with 6 posts and a 12 ft x 30 ft base - outside post to outside post. The roof for this pavilion has a pitch of 6:12 and features large opening on all sides.

The roof for this pavilion has a pitch of 6:12 and features openings on all sides. Make sure you take a look over the local building codes, so you comply with the regulations.

You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!


*This is a Premium Plan

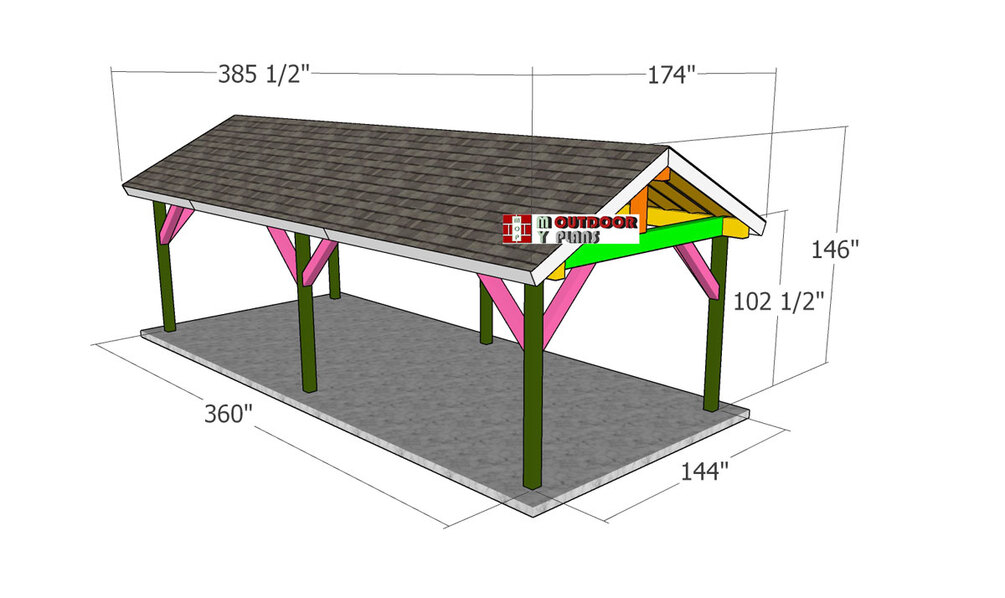

*See full dimensions in the FEATURED IMAGES.

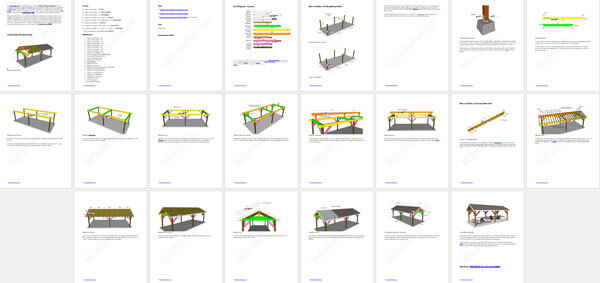

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Cut Layout Diagrams (show you how to cut the components, so you get minimal waste)
  • Color Code (easily identify the components)
  • Tools List, Time & Cost Estimate
  • Measurements are in imperial


Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Payment is managed by Gumroad and it is safe. Payment is secured by SSL with 128-bit encryption and processed with PCI Compliant service providers. Find out moreĀ here.
  • Once payment is completed, you will receive an email from Gumroad (look in spam folder as well). Inside the email you have a VIEW CONTENT button. Press the button, then Download.
I want this!
Size
1.04 MB
Length
22 pages
