20x40 RV Carport Plans

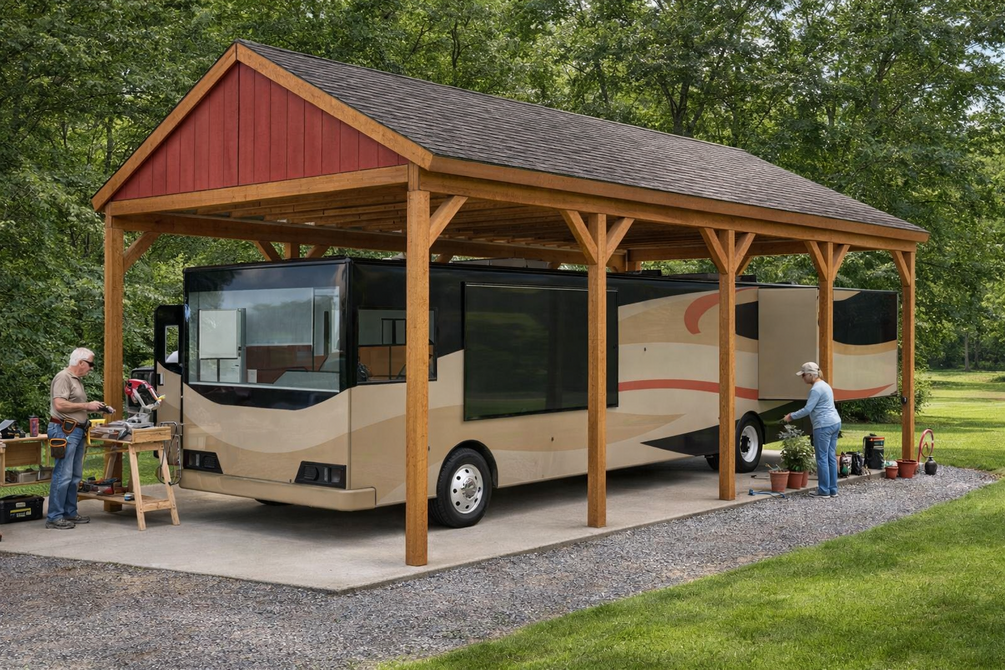

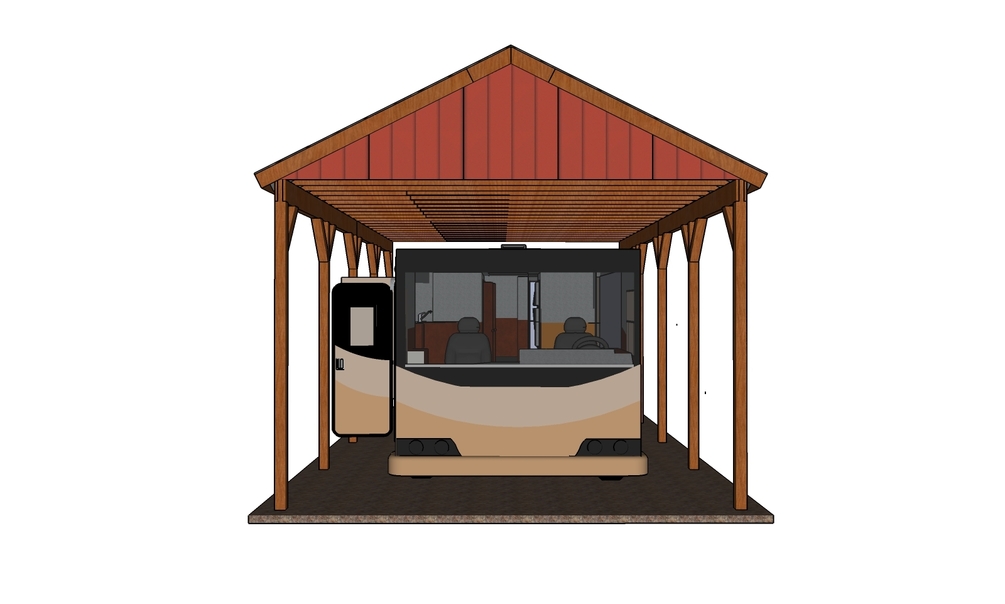

If you want to build sturdy 20x40 RV gable carport, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a few hours. The plans are designed with efficiency in mind, so you won't waste materials. This simple carport can shelter a large motor-home or even a boat.

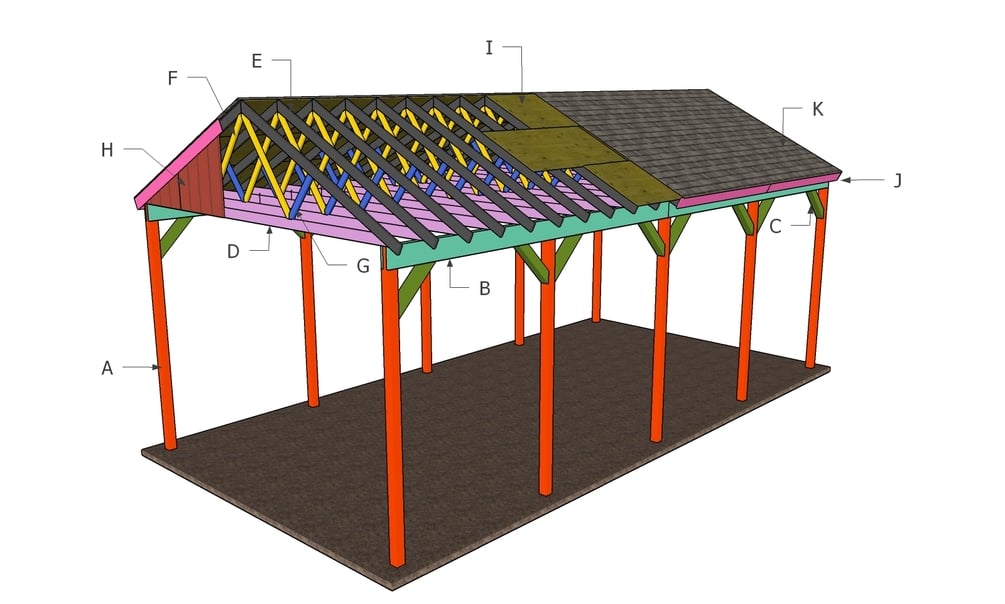

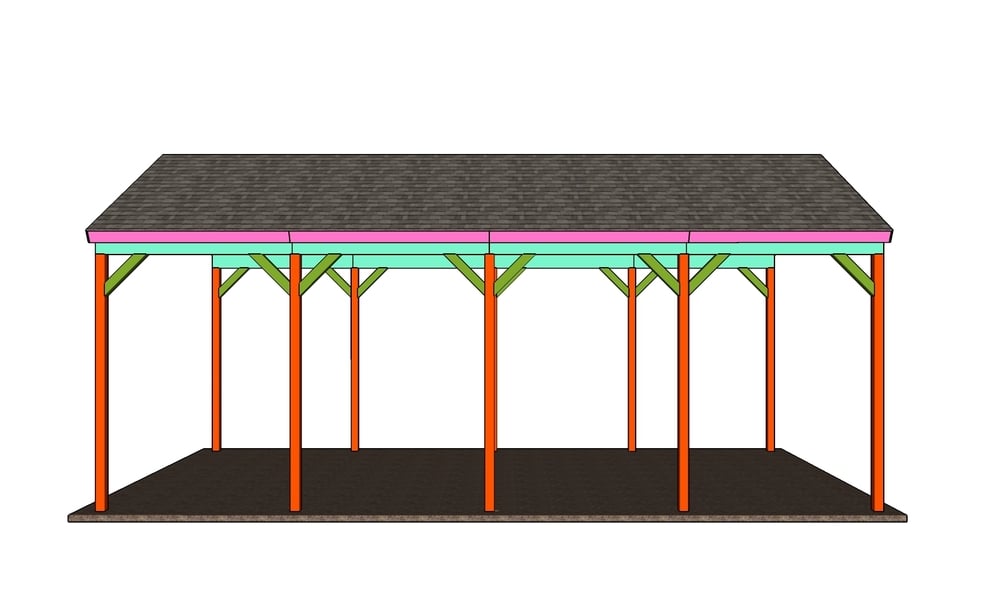

This carport is built on a 6x6 post framing and it features a roof with a 6:12 pitch. The trusses are placed every 24" on center and the sheets are made from 1/2" plywood. The carport is covered with asphalt shingles, but you can use metal sheets as well. The height of the posts is 14 ft. The footprint of the carport is 20 ft x 40 ft. The total height of the carport is 20 ft.

In addition, just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects! A list with all the tools that are needed is also present, along with Full Cut, Shopping lists and Plan of Cut Diagrams.

*These are PREMIUM PLANS

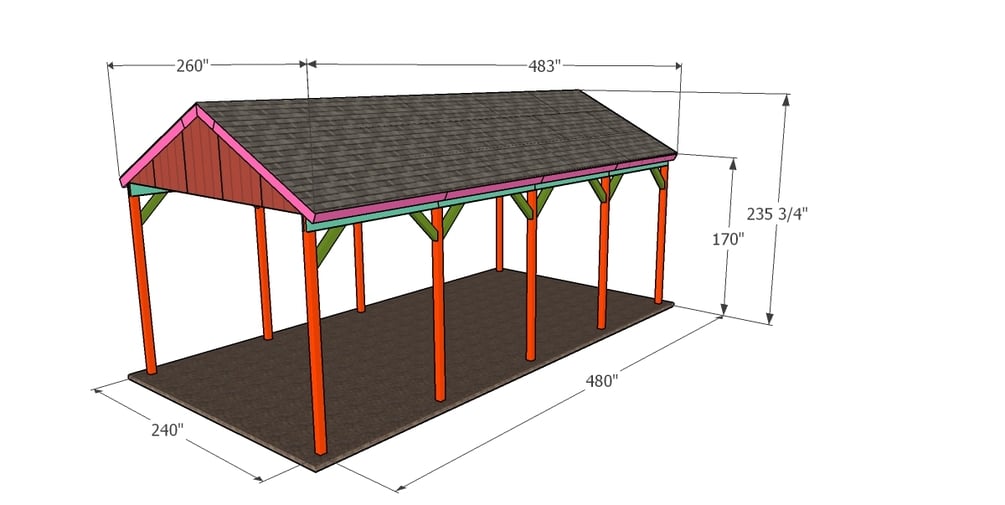

*See full dimensions in the FEATURED IMAGES.

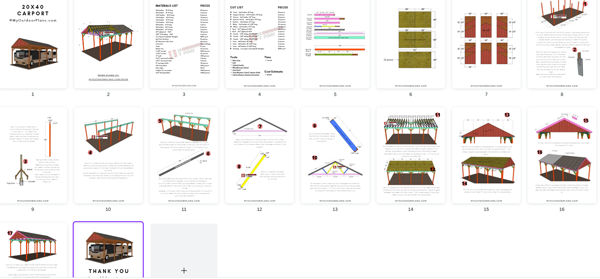

The PDF file comes with:

• Cut Diagrams, Parts Lists
• 3D diagrams with detailed step by step instructions
• Full Cut & Shopping lists
• Cut Layout Diagrams
• Tools List, Time & Cost Estimate
• Measurements are in imperial

Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
