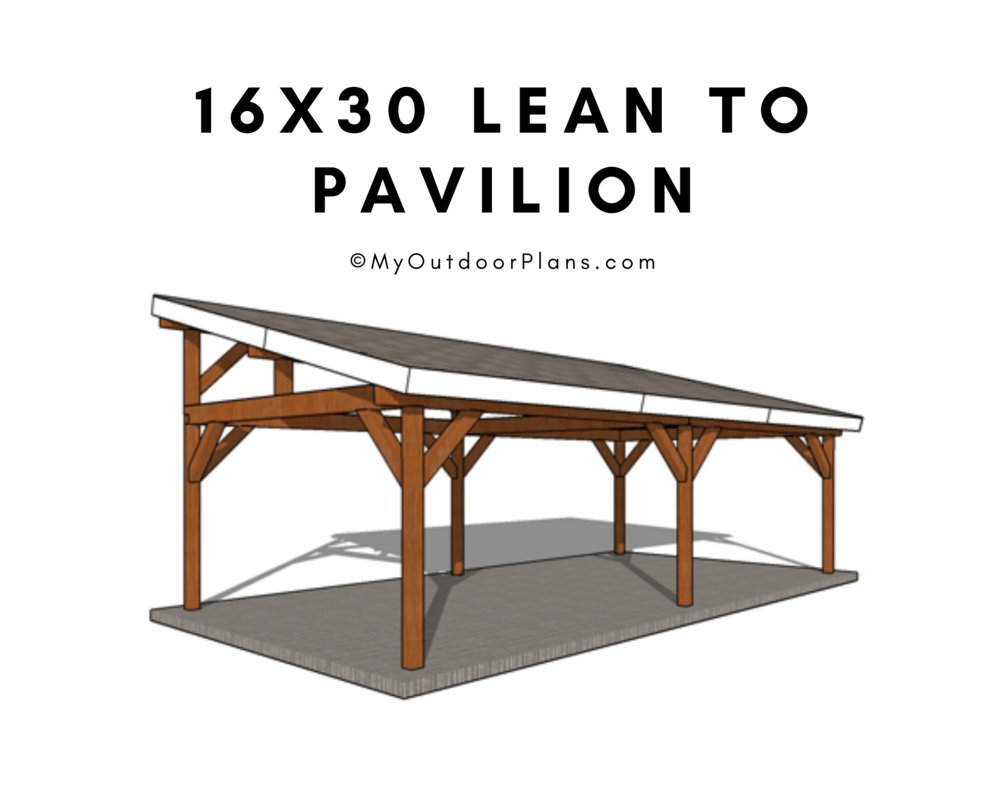

16x30 Lean to Pavilion Plans

$9.99
$9.99
myoutdoorplans
0 ratings

This step by step diy woodworking project is about a 16x30 lean to pavilion plans. This is a large pavilion built on a sturdy 6x6 and 6x10 framing, so you can enjoy your garden and still have a roof that protects you from the sun or from the rain.

The roof for this pavilion has a pitch of 3:12 and features large opening on all sides. Make sure you take a look over the local building codes, so you comply with the regulations.

You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!


*This is a PREMIUM PLAN

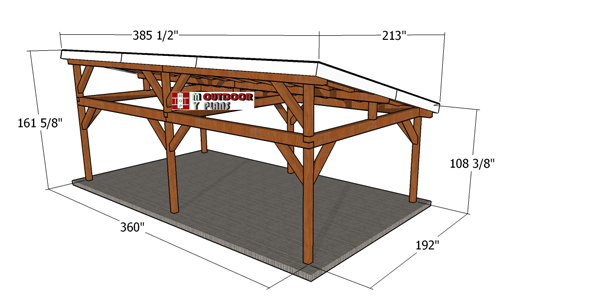

*See full dimensions in the FEATURED IMAGES.

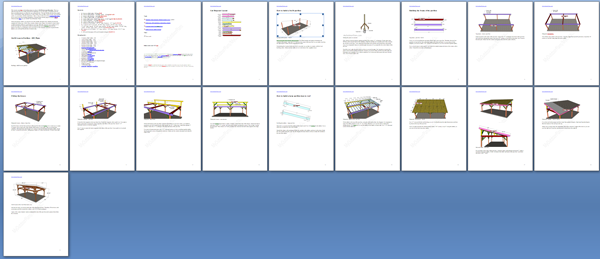

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Cut Layout Diagrams (show you how to cut the components, so you get minimal waste)

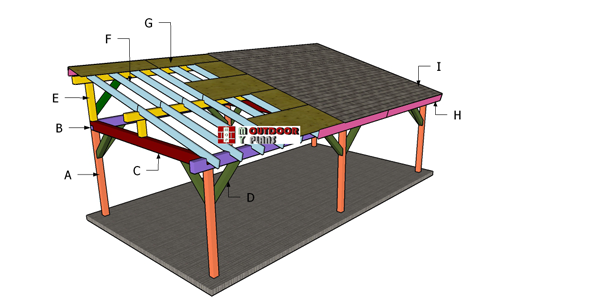

  • Color Code (easily identify the components)
  • Tools List, Time & Cost Estimate
  • Measurements are in imperial


Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Size
    1.4 MB
  • Length
    19 pages
  • Size1.4 MB
  • Length19 pages
