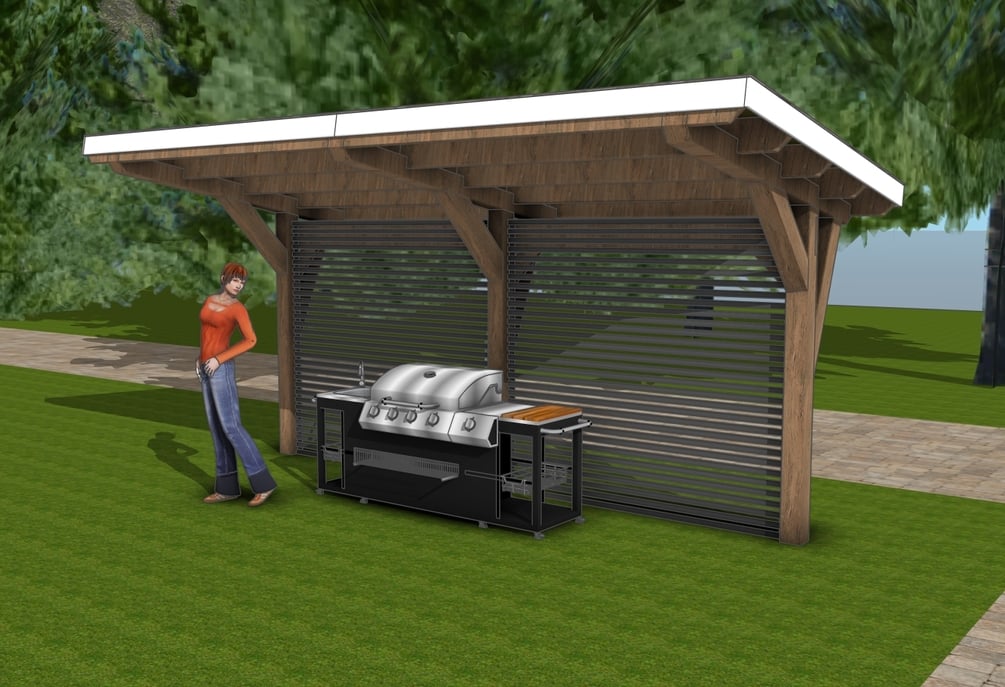

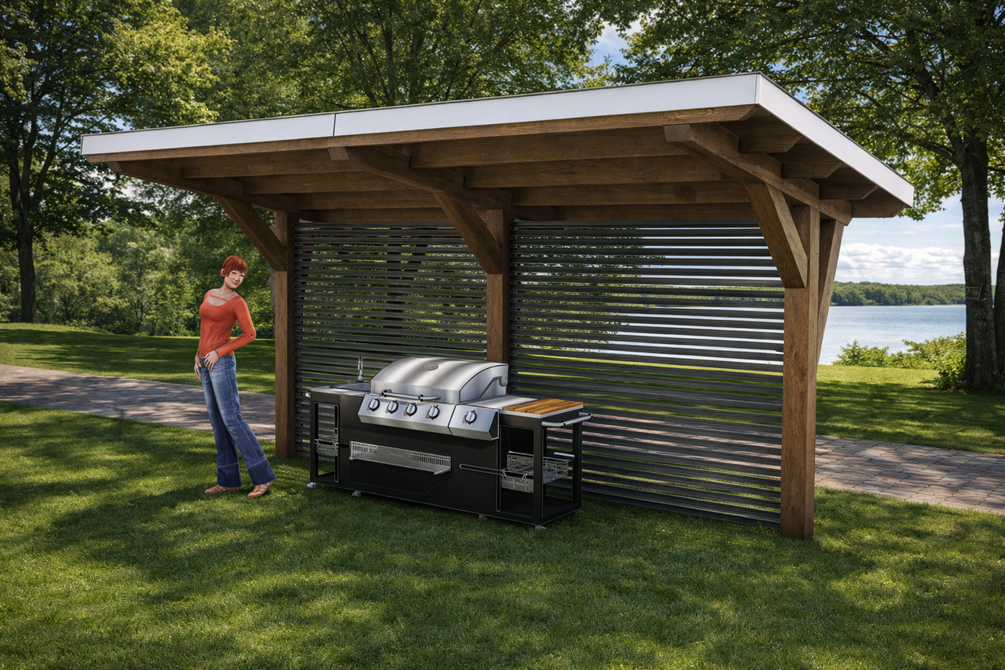

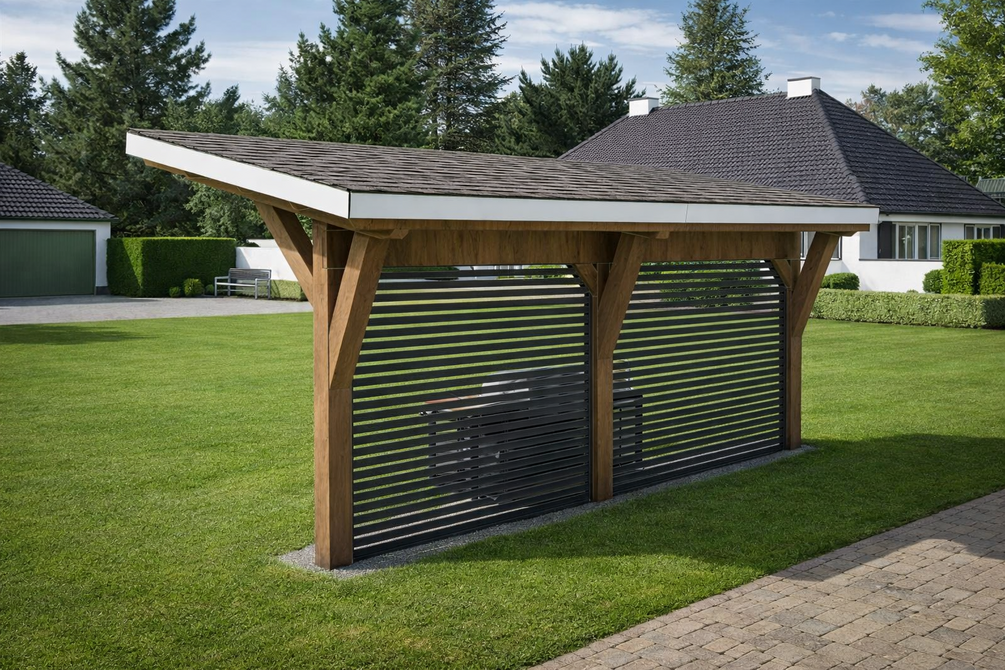

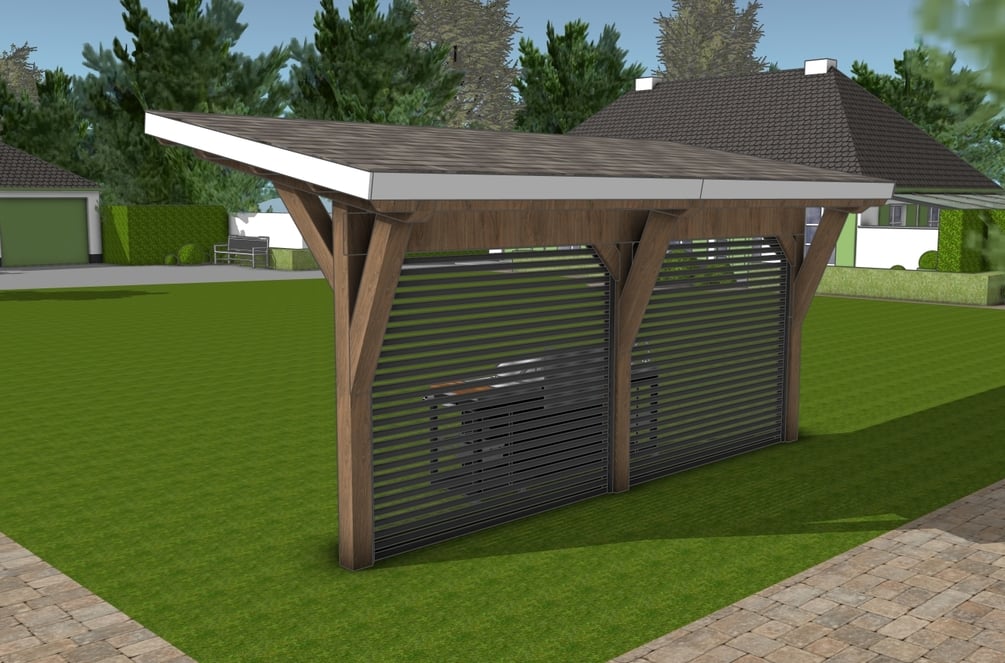

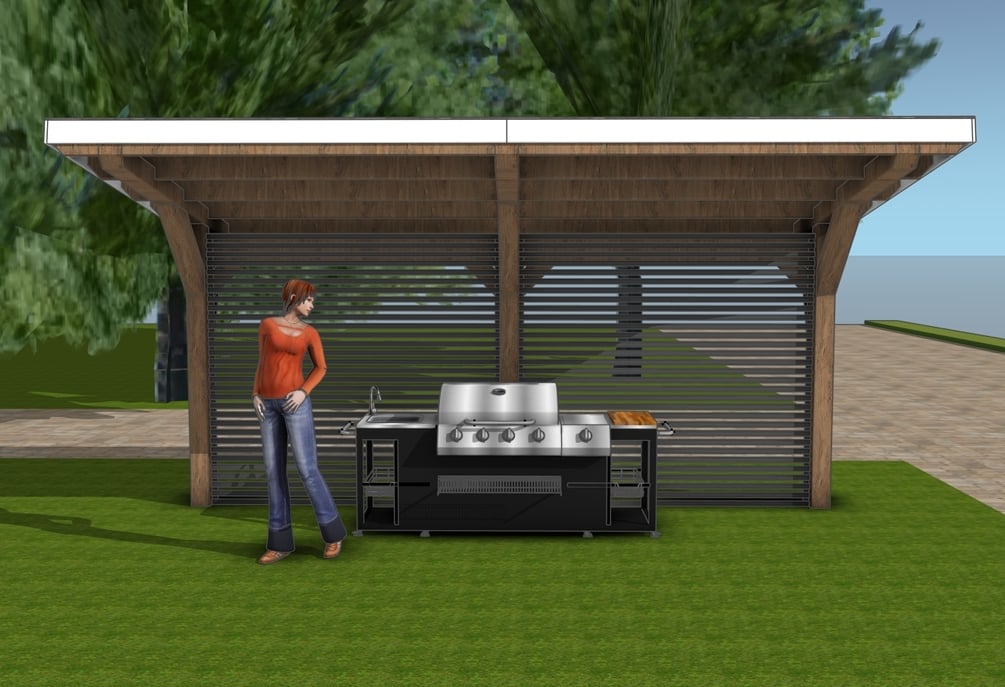

Large Cantilevered Pergola Plans

This 16 ft cantilevered pergola plan is perfect for DIYers who want to build something bold, functional, and beautiful. With no front posts, the design opens up your space while still providing generous shade—ideal for patios, decks, or outdoor kitchens. The overhang gives it a sleek, modern look, while the step-by-step instructions make it approachable even if you're not a pro builder.

You'll get detailed diagrams, a complete materials list, and easy-to-follow guidance to help you bring this project to life with confidence. If you're ready to add serious style and value to your backyard, this plan will walk you through the process like a trusted friend—tools in hand, sawdust flying, and a cold drink waiting when the job’s done.

*This is a PREMIUM PLAN

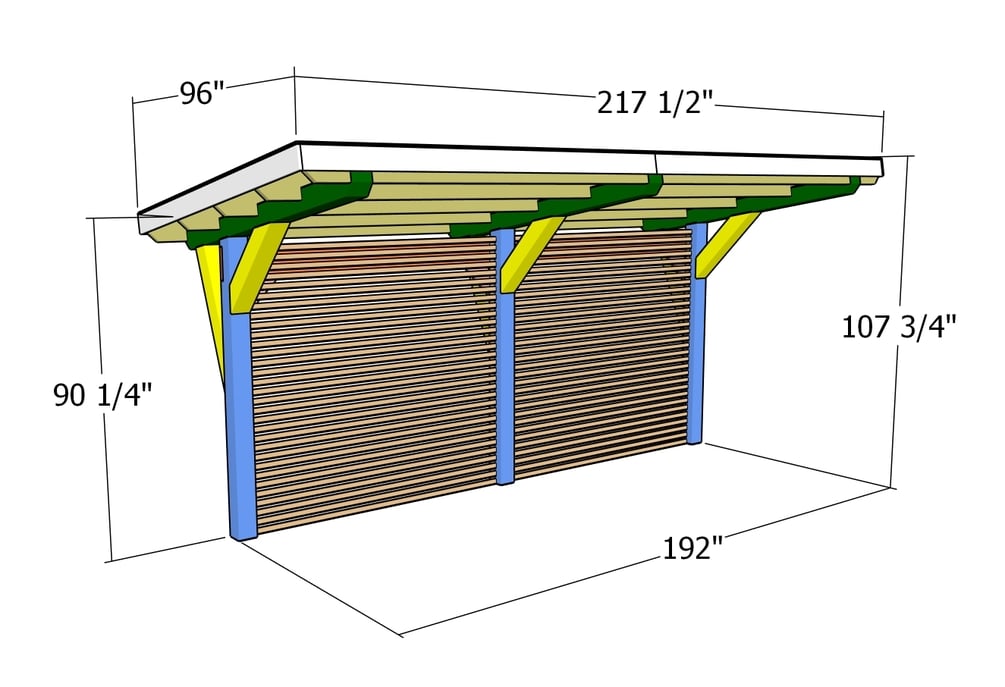

*See full dimensions in the FEATURED IMAGES.

The PDF file comes with:

• Cut Diagrams, Parts Lists
• 3D diagrams with detailed step by step instructions
• Full Cut & Shopping lists
• Cut Layout Diagrams (show you how to cut the components, so you get minimal waste)
• Color Code (easily identify the components)
• Tools List, Time & Cost Estimate
• Measurements are in imperial

Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
