16x20 Gable Pavilion Plans

This is a digital product containing a PDF file about how to build a simple 16x20 pavilion plans. The diy wood plans are detailed and come with step by step 3D diagrams, instructions and a Full Cut & Shopping list. The tools needed for the project are also listed in the plans.

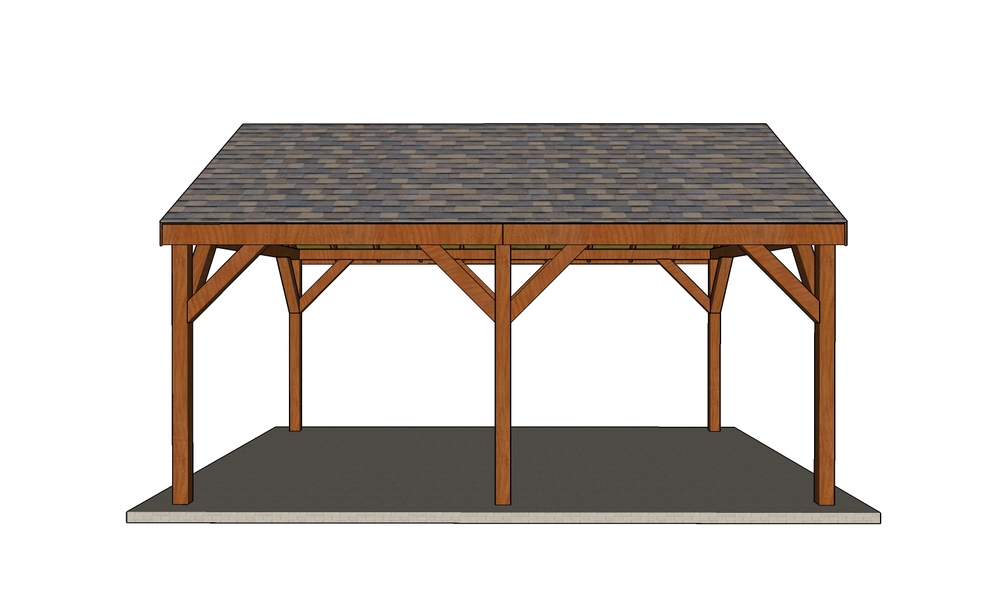

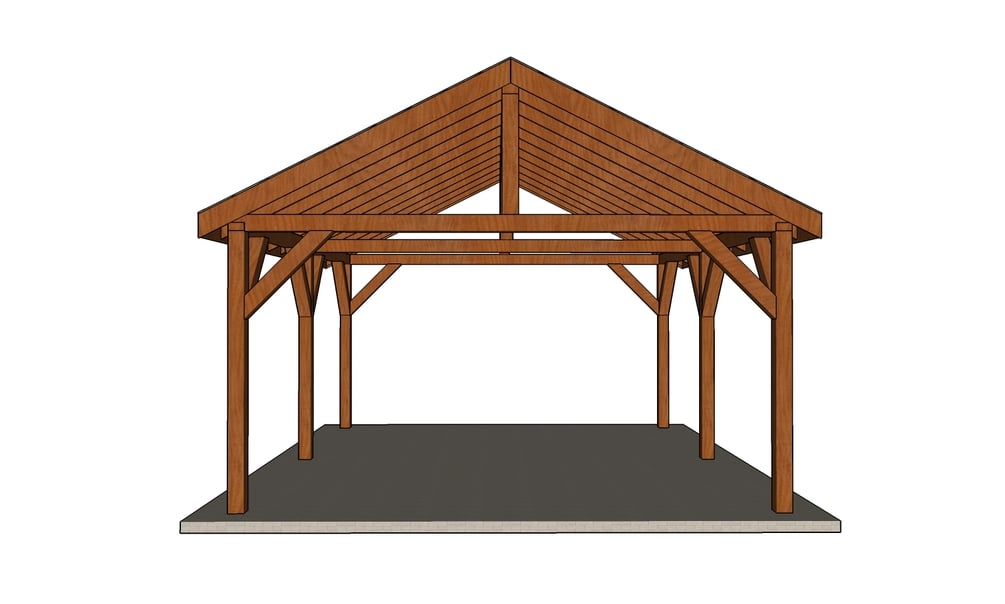

This is a simple wooden gazebo with gable roof with a base of 16 ft x 20 ft, that you can build in a few days and create a few shade for your garden. Measurements are in imperial. Roof pitch is 6:12.

You will get:

• Cut Diagrams, Parts Lists
• 3D diagrams with detailed step by step instructions
• Full Cut & Shopping lists
• Tools List

*1 PDF file with full plans! (plans from the blog revised and grouped in 1 PDF file with 1 Cut list, 1 Shopping list)

Measurements are in imperial. The plans are for personal use only. The legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
