16x18 Gable Pavilion Plans

$9.99
0 ratings

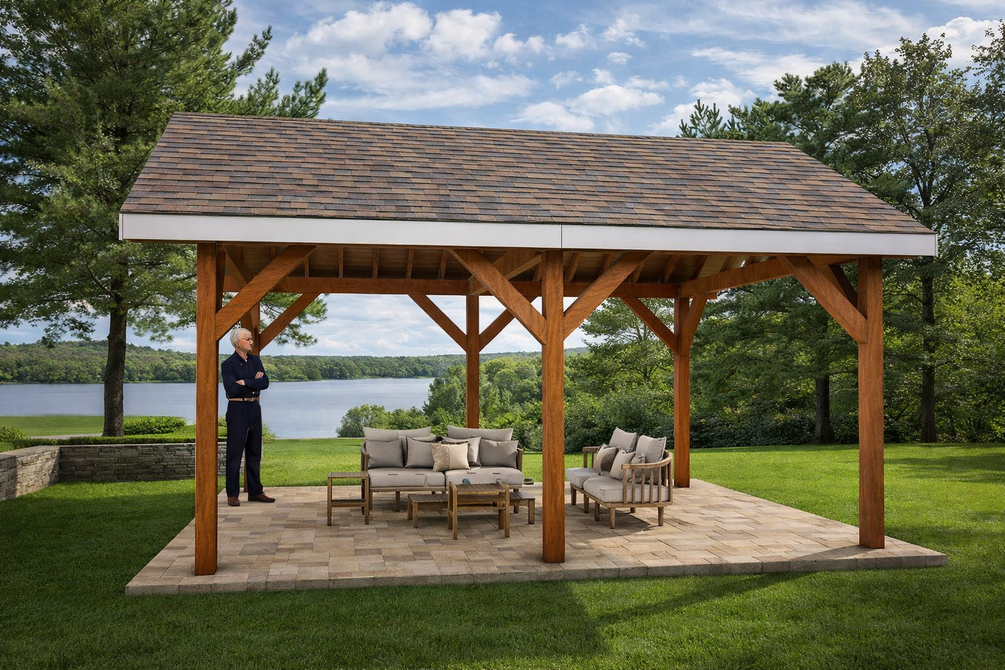

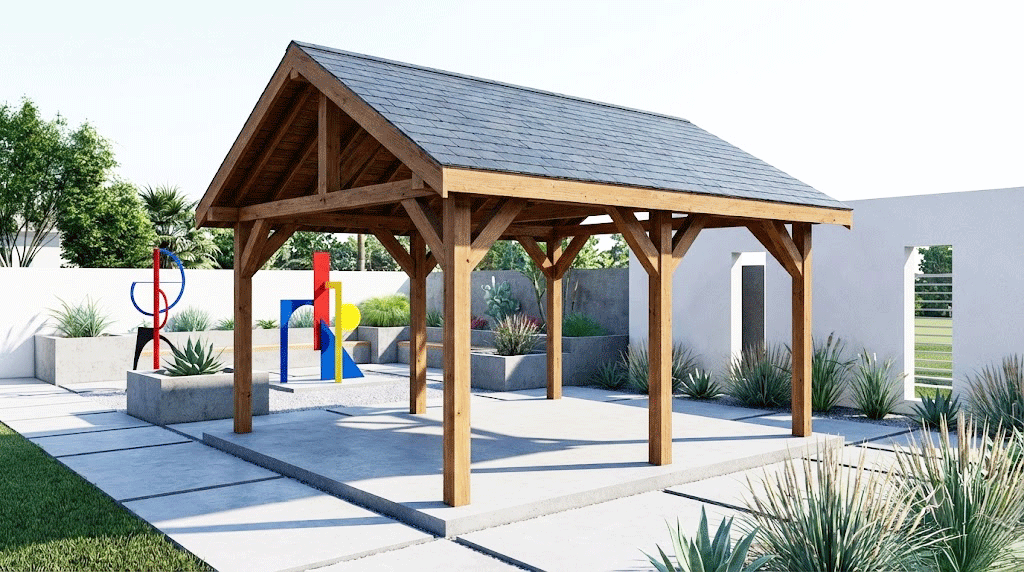

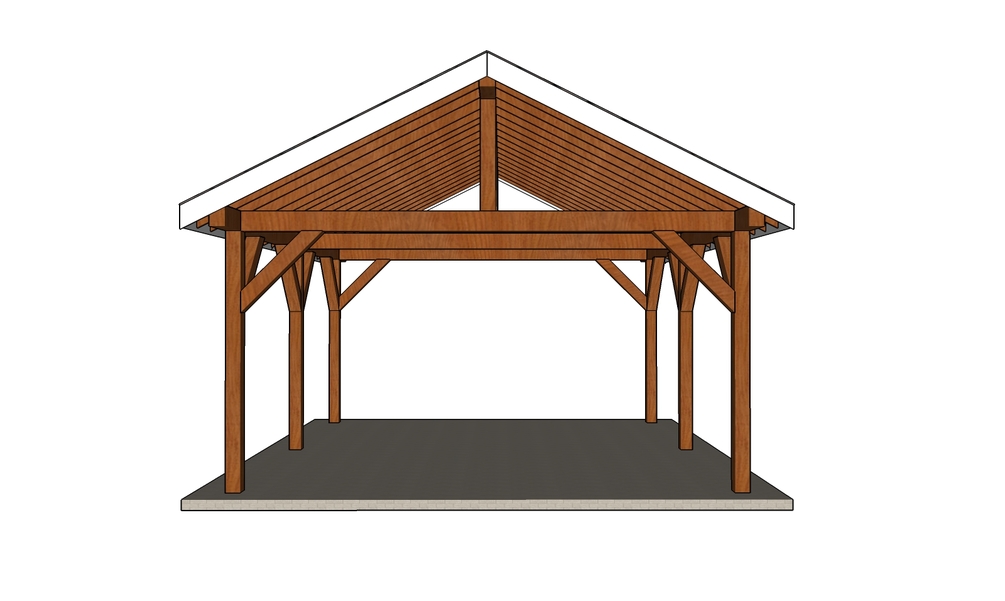

This step by step diy woodworking project is about a 16x18 outdoor gable pavilion plans. This is a large pavilion built on a sturdy 6x6 and 6x8 framing, so you can enjoy your garden and still have a roof that protects you from the sun or from the rain. The roof for this pavilion has a pitch of 6:12. Make sure you take a look over the local building codes, so you comply with the regulations.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!


*This is a PREMIUM PLAN

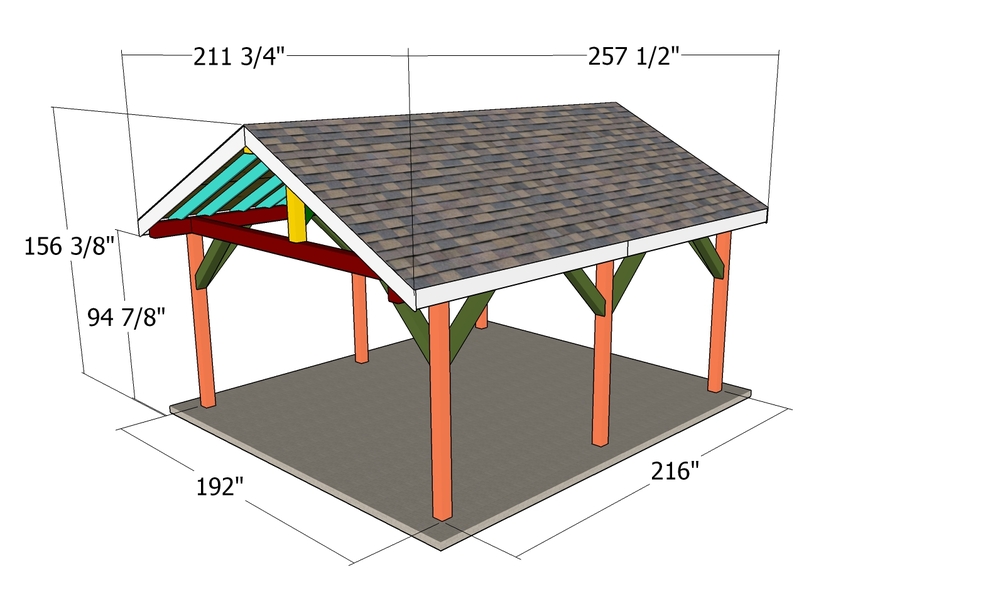

*See full dimensions in the FEATURED IMAGES.

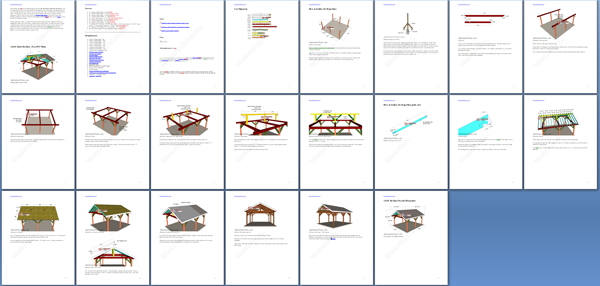

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Cut Layout Diagrams (show you how to cut the components, so you get minimal waste)
  • Color Code (easily identifiable components)
  • Tools List, Time & Cost Estimate
  • Measurements are in imperial


Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Payment is managed by Gumroad and it is safe. Payment is secured by SSL with 128-bit encryption and processed with PCI Compliant service providers. Find out moreĀ here.
  • Once payment is completed, you will receive an email from Gumroad (look in spam folder as well). Inside the email you have a VIEW CONTENT button. Press the button, then Download.
I want this!
Size
1.82 MB
Length
22 pages
