17x17 Lean to Pavilion Plans

$11.99
0 ratings

This step by step diy woodworking project is about a 17x17 lean to pavilion plans. This is a large outdoor pavilion with a gable roof, ideal for outdoor parties and hanging out with the family. This makes for the perfect addition next to the property line. With some modifications, you can even attach the structure to an already existing building.

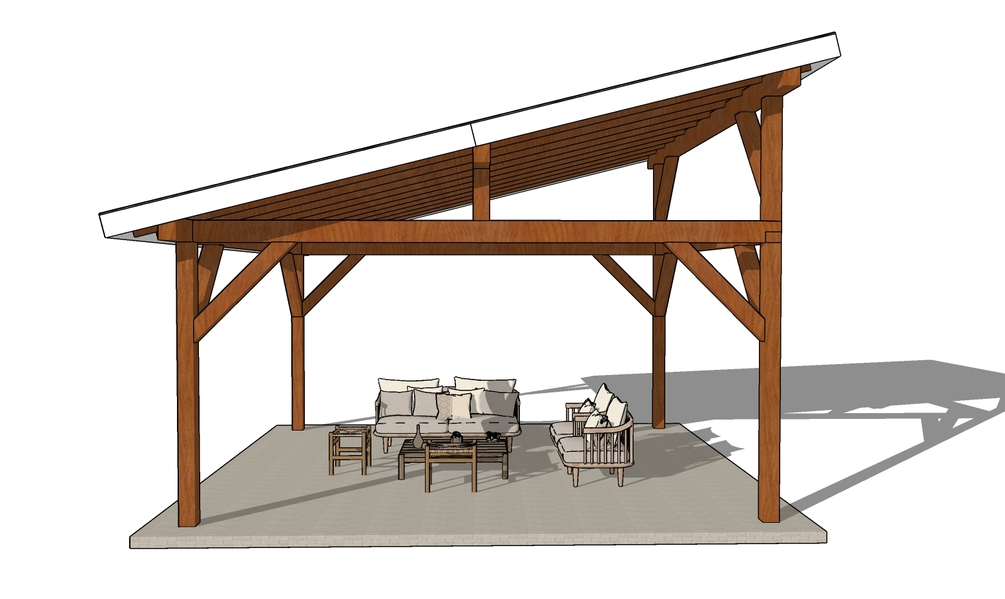

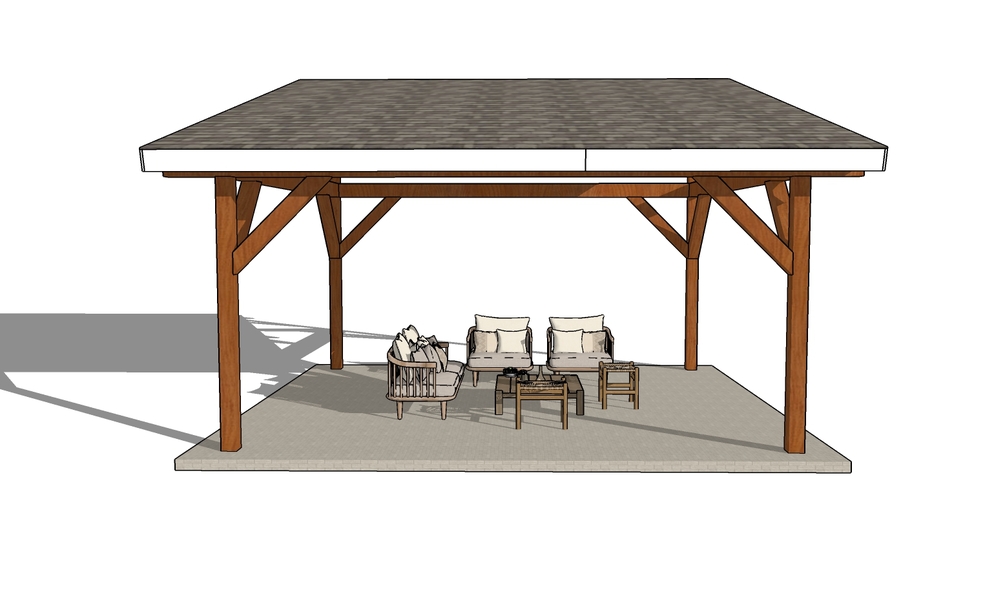

The pavilion features a lean to roof with a 3:12 pitch with generous overhangs on all sides. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.


*These are PREMIUM PLANS

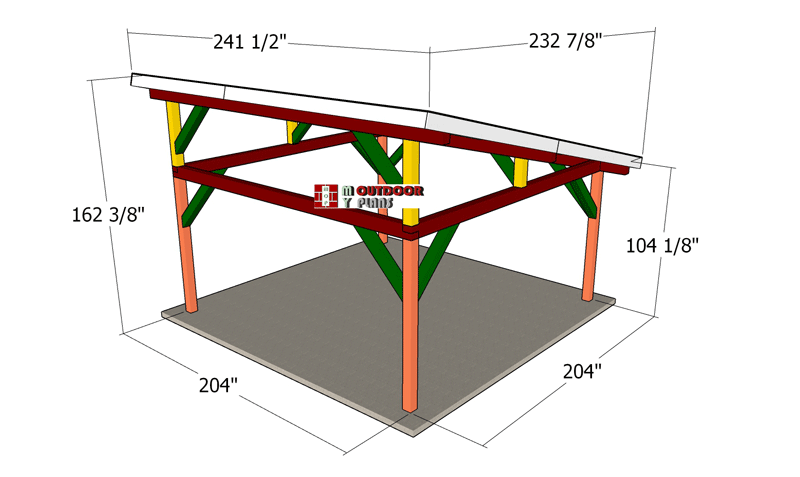

*See full dimensions in the Featured Images

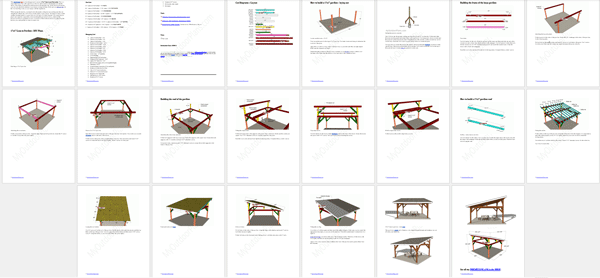

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Cut Layout Diagrams
  • Tools List, Time & Cost Estimate
  • Measurements are in imperial


Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Payment is managed by Gumroad and it is safe. Payment is secured by SSL with 128-bit encryption and processed with PCI Compliant service providers. Find out moreĀ here.
  • Once payment is completed, you will receive an email from Gumroad (look in spam folder as well). Inside the email you have a VIEW CONTENT button. Press the button, then Download.
I want this!
Size
1.31 MB
Length
22 pages
