12x16 Gable Porch Roof Plans

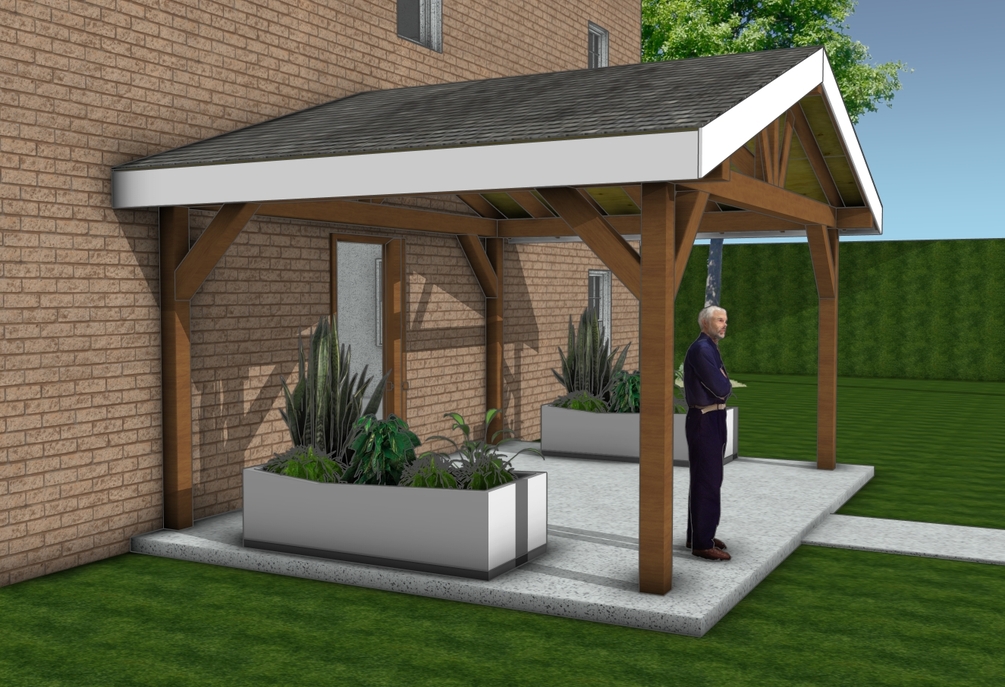

Take your home’s outdoor space to the next level with this 12x16 attached gable porch roof plan. Whether you’re adding a cozy front porch or a shaded backyard retreat, these detailed plans are designed to help you build with confidence—even if you're a weekend DIYer.

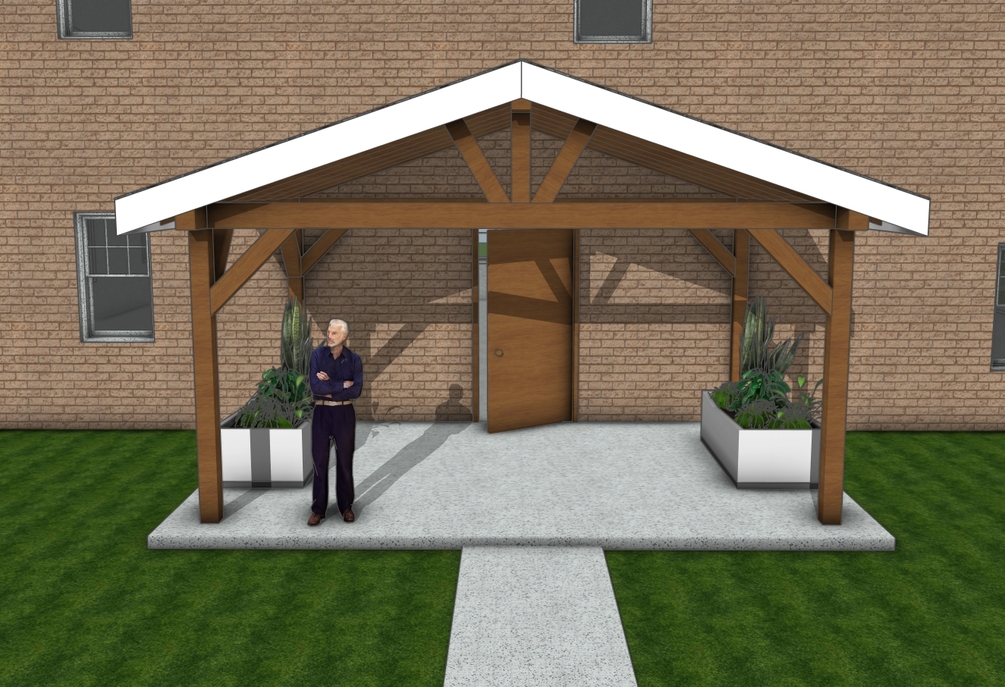

This project features a sturdy four-post design, a classic gable roof with a 6:12 pitch, and clean trim lines for a finished, professional look. Every step is clearly illustrated with 3D diagrams and precise measurements, so there’s no guesswork along the way.

*This is a PREMIUM PLAN

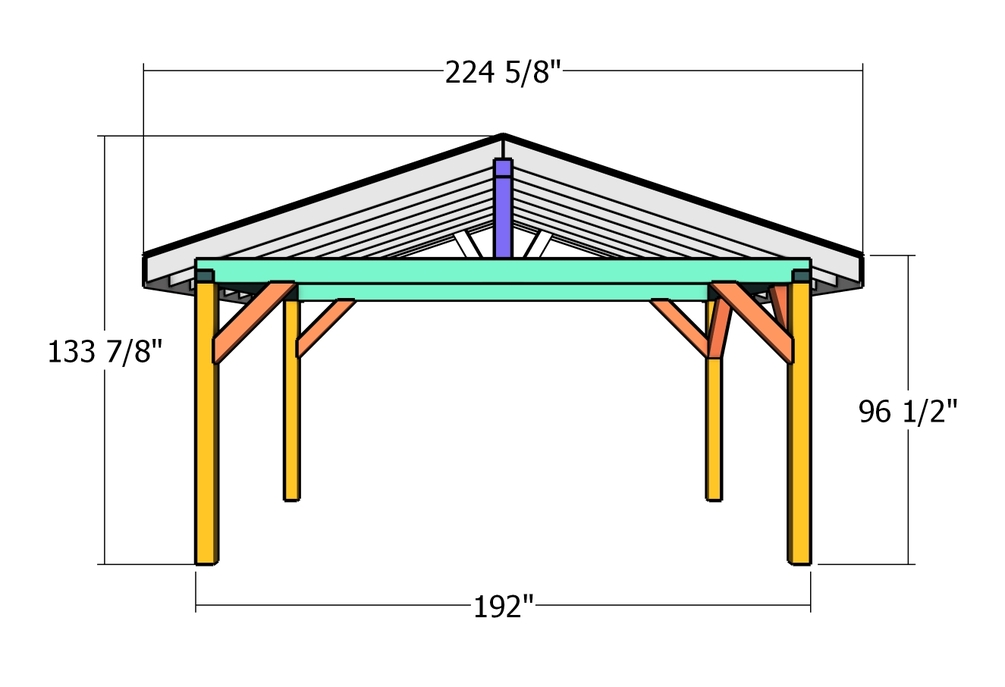

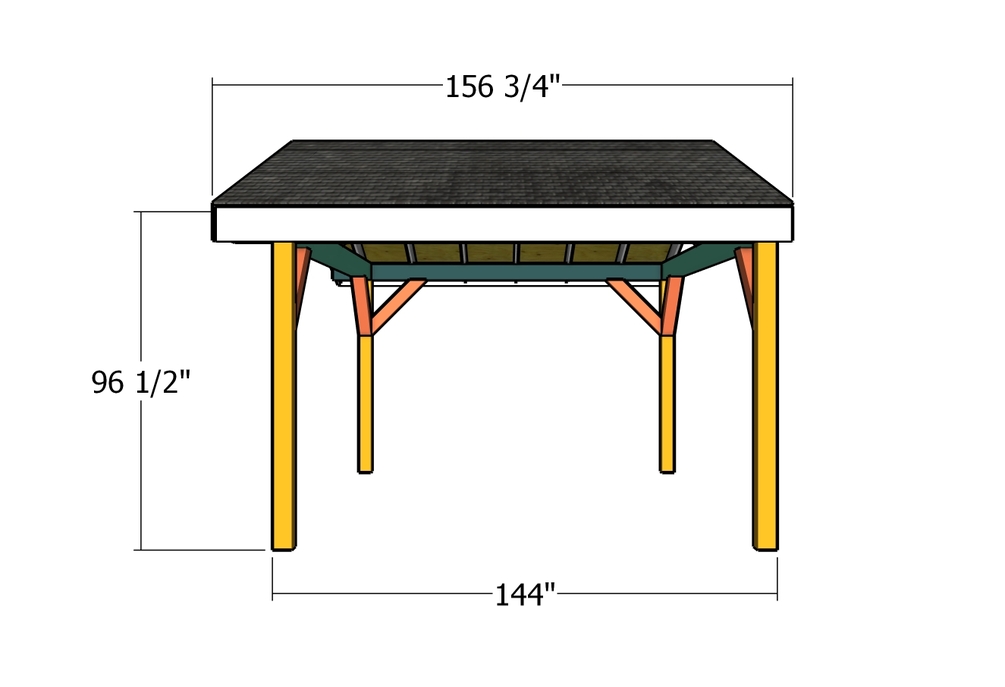

*See full dimensions in the FEATURED IMAGES.

The PDF file comes with:

• Cut Diagrams, Parts Lists
• 3D diagrams with detailed step by step instructions
• Full Cut & Shopping lists
• Cut Layout Diagrams (show you how to cut the components, so you get minimal waste)
• Color Code (easily identify the components)
• Tools List, Time & Cost Estimate
• Measurements are in imperial

Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
