14x18 Gable Pavilion Plans

$9.99
$9.99
myoutdoorplans
1 rating

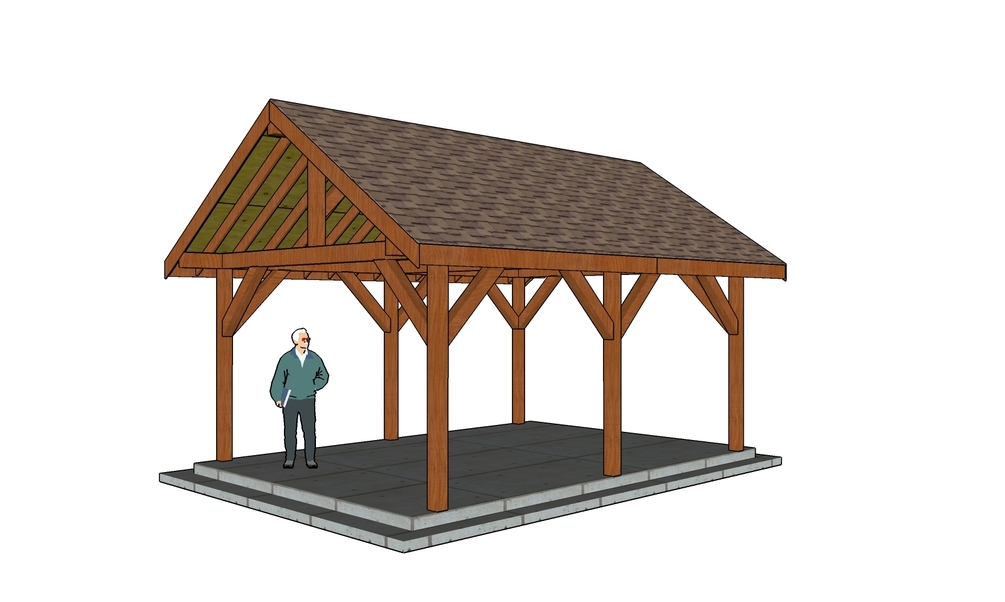

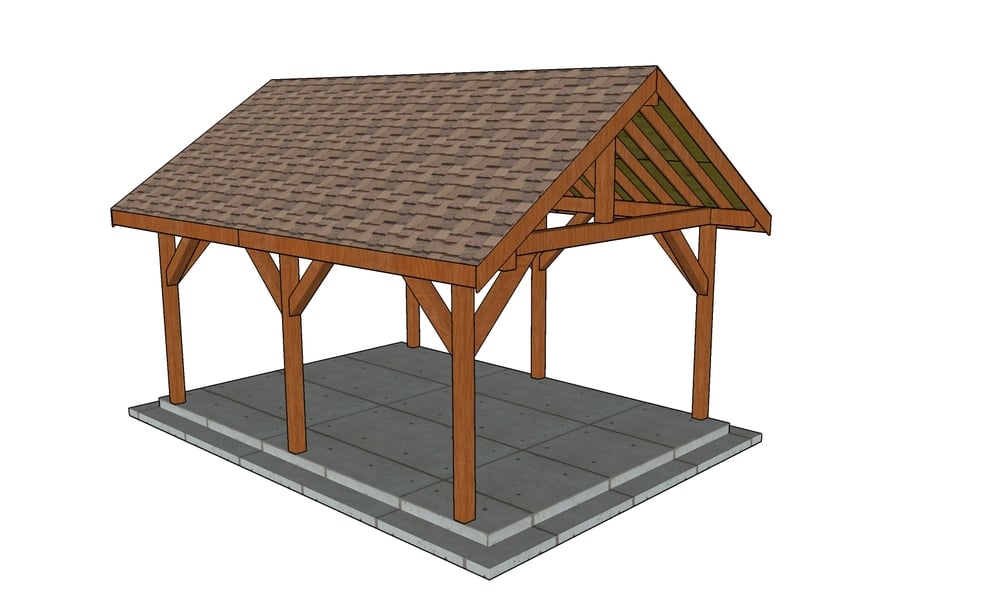

If you want to build a beautiful 14x18 outdoor pavilion with a gable roof, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a weekend. This pavilion is built on a sturdy 6x6 framing, with 2x6 rafters every 16" on center.

The pavilion features a gable roof with a 8:12 pitch and generous overhangs on all sides. Therefore the base of the pavilion has 14 ft x 18 ft outside post to outside post. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.

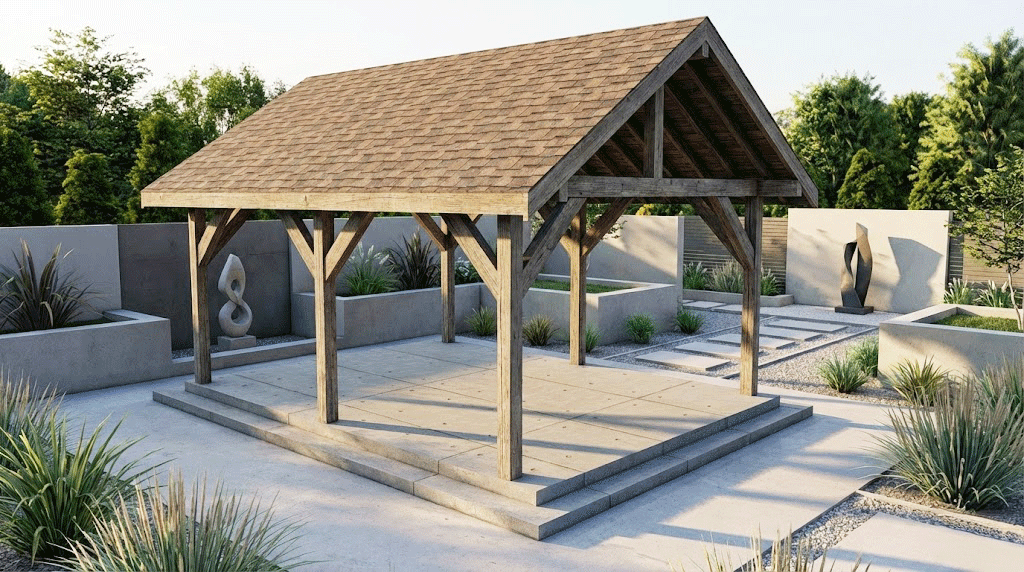

This makes for the perfect backyard shelter that can cover a picnic table, ca sofa or even a TV. If you need some shade in the backyard, this modern garden pavilion is sturdy, simple to build and nice to look at.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!


*These are PREMIUM PLANS

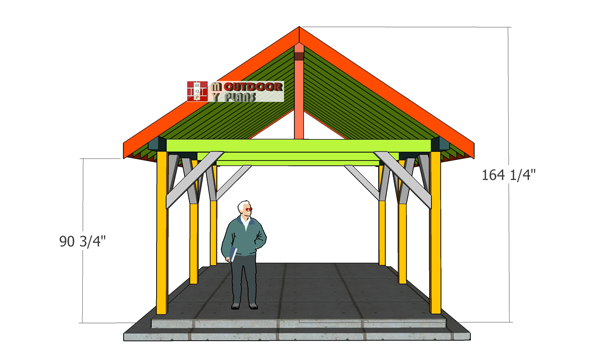

*See full dimensions in the FEATURED IMAGES.


The PDF file comes with:

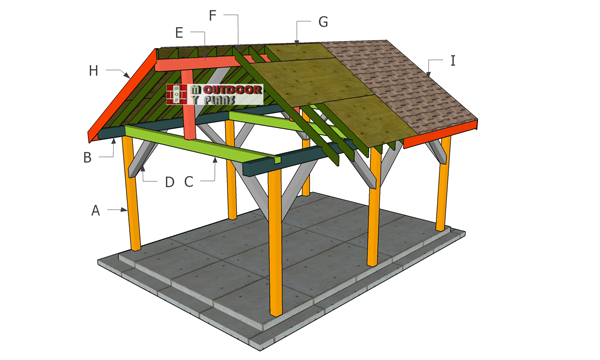

  • Cut Diagrams, Parts Lists

  • 3D diagrams with detailed step by step instructions

  • Full Cut & Shopping lists

  • Cut Layout Diagrams

  • Tools List, Time & Cost Estimate

  • Measurements are in imperial


All plans have been designed by Ovidiu D. The plans are for personal use ONLY. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
