24x24 Gable Pavilion Plans

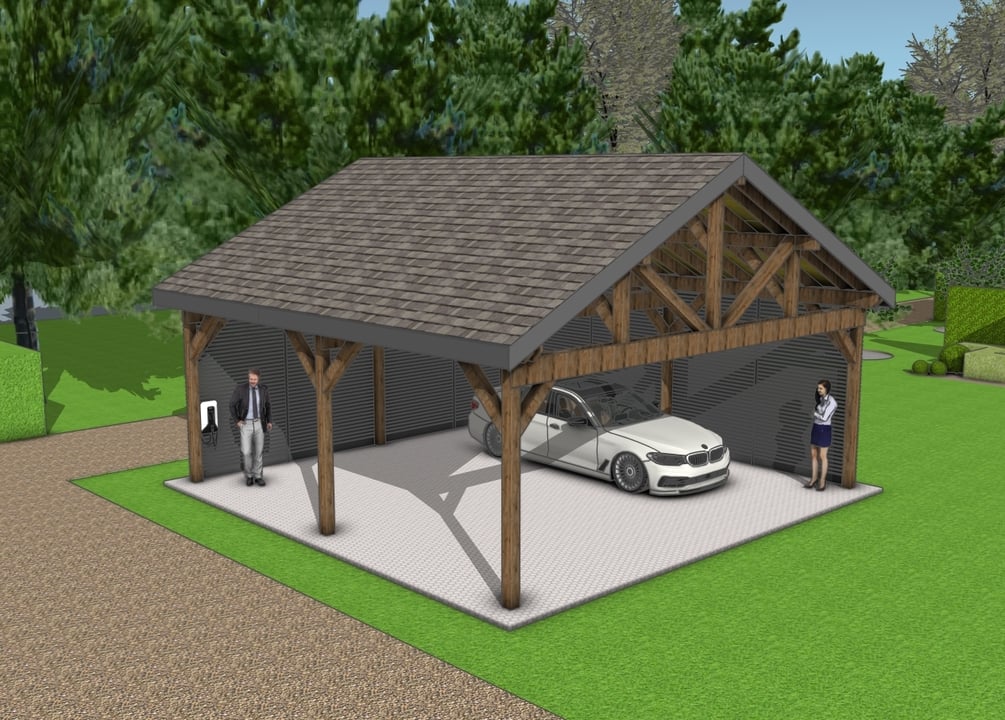

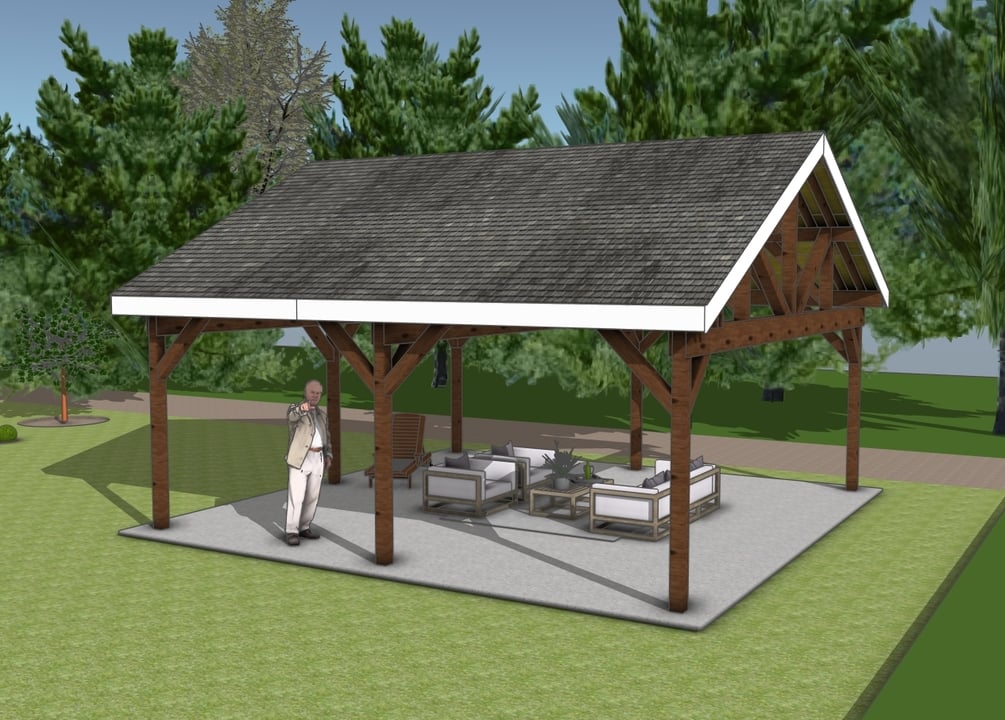

Build a sturdy and stylish 24x24 pavilion or carport with this detailed woodworking plan. Designed for durability and ease of construction, this plan includes step-by-step instructions, clear diagrams, and precise measurements to help you complete your project with confidence. Whether you're creating a shaded outdoor retreat, a functional vehicle shelter, or a gathering space, this structure is built to last.

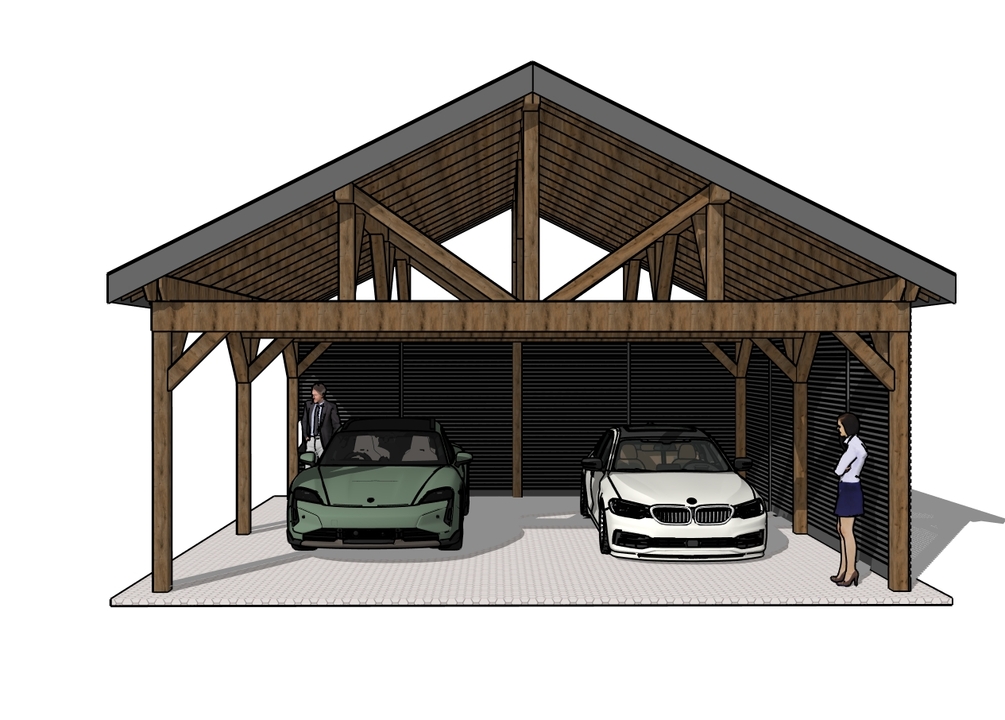

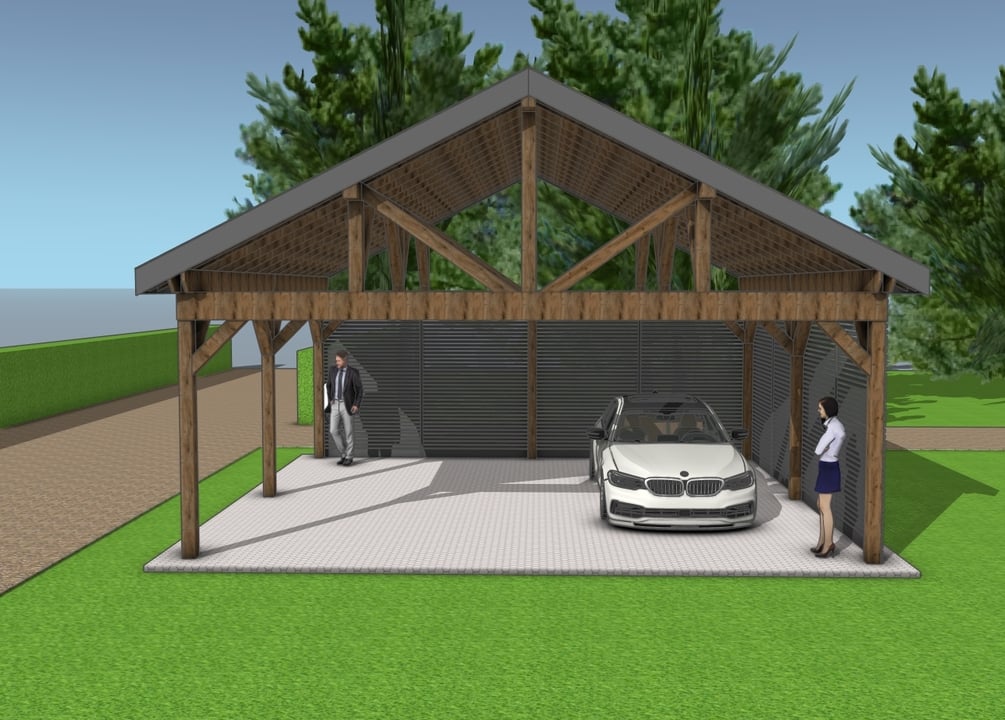

The design features 6x6 posts, 2x10 beams, and a strong 6x8 ridge beam system for superior stability. The three-ridge beam support system evenly distributes the roof load, while diagonal bracing adds extra reinforcement. The plan also includes guidance on rafter spacing, securing posts to concrete footings, and ensuring a strong, weather-resistant build.
This downloadable plan is perfect for DIY builders and professionals alike. It provides a complete materials list, detailed diagrams, and easy-to-follow steps to make construction as smooth as possible. Get started today and bring your outdoor project to life.
*This is a PREMIUM PLAN
*See full dimensions in the FEATURED IMAGES.

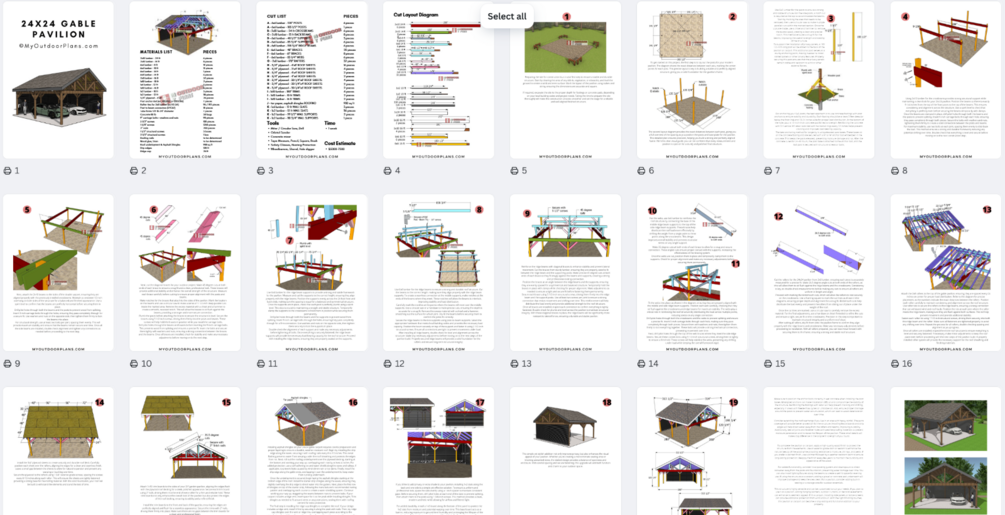

The PDF file comes with:
- Cut Diagrams, Parts Lists
- 3D diagrams with detailed step by step instructions
- Full Cut & Shopping lists
- Cut Layout Diagrams (show you how to cut the components, so you get minimal waste)
- Color Code (easily identify the components)
- Tools List, Time & Cost Estimate
- Measurements are in imperial
Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
- Payment is managed by Gumroad and it is safe. Payment is secured by SSL with 128-bit encryption and processed with PCI Compliant service providers. Find out more here.
- Once payment is completed, you will receive an email from Gumroad (look in spam folder as well). Inside the email you have a VIEW CONTENT button. Press the button, then Download.
