16x20 Pavilion Plans

If you want to build a beautiful 16x20 outdoor pavilion, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a weekend. This pavilion is built on a sturdy 6x6 framing, with 2x6 rafters every 24" on center.

The pavilion features a gable roof with a 6:12 pitch and 1 ft overhangs on the sides and 24" on the front and back. Therefore the footprint of the roof is 18'x24', while the base of the pavilion is 16'x20'. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!

*These are PREMIUM PLANS

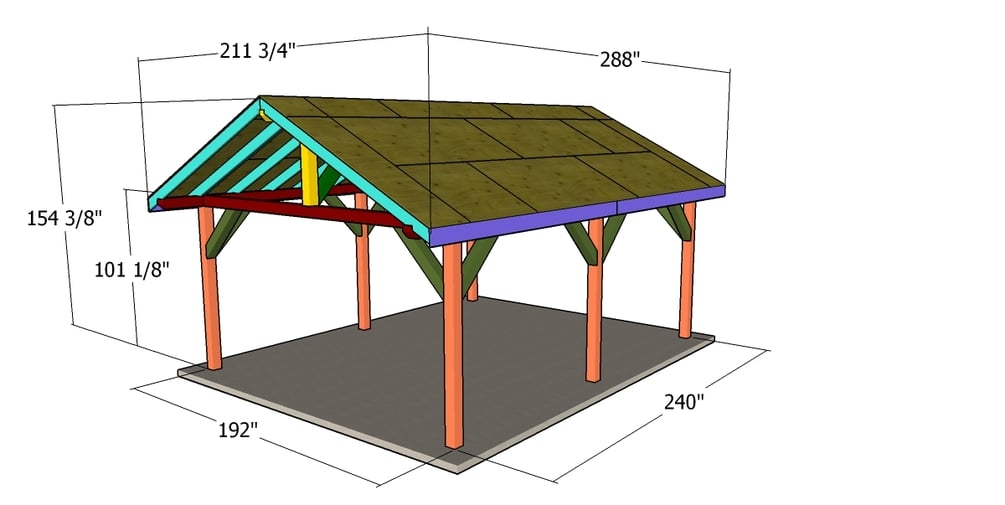

*See full dimensions in the FEATURED IMAGES.

The PDF file comes with:

• Cut Diagrams, Parts Lists
• 3D diagrams with detailed step by step instructions
• Full Cut & Shopping lists
• Cut Layout Diagrams
• Tools List, Time & Cost Estimate
• Measurements are in imperial
