12x16 Gable Pavilion Plans

$7.99
$7.99
myoutdoorplans
0 ratings

If you want to build a beautiful 12x16 outdoor pavilion with a gable roof, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a weekend. This pavilion is built on a sturdy 6x6 framing, with 2x6 rafters every 16" on center.

The pavilion features a gable roof with a 8:12 pitch and generous overhangs on all sides. Therefore the base of the pavilion is 12'x16'. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.

This makes for the perfect backyard shelter that can cover a picnic table. This rectangular pavilion is sturdy and it has the perfect size for a family. This is timeless design, so you can build this in any garden and match the style of your house.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!


*These are PREMIUM PLANS

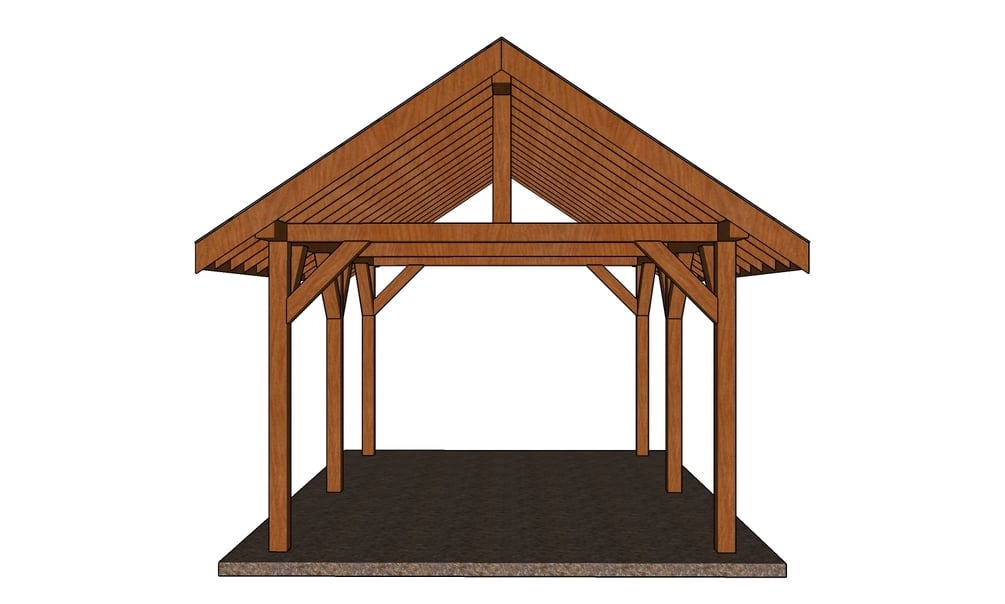

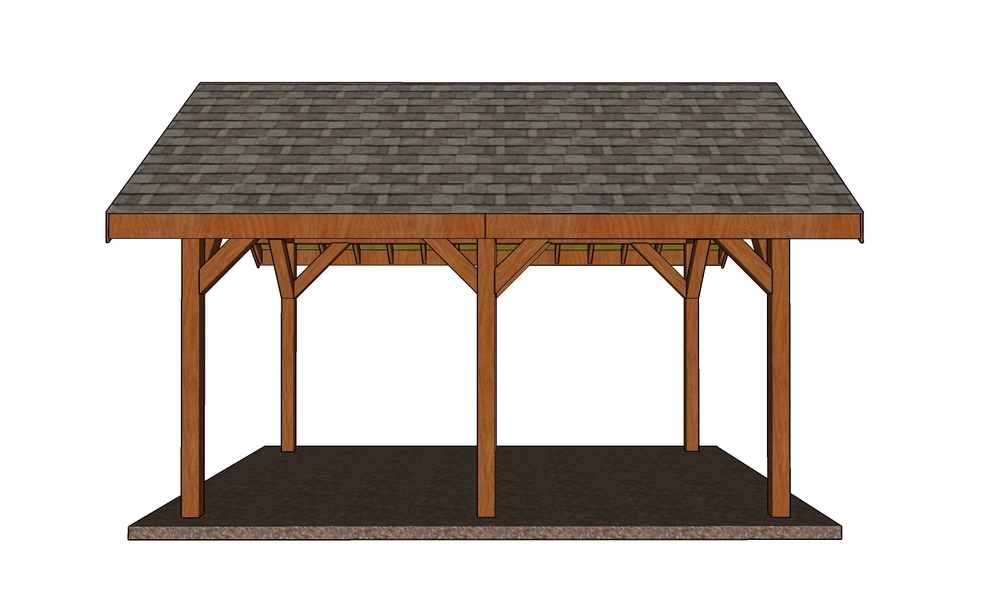

*See full dimensions in the FEATURED IMAGES.


The PDF file comes with:

  • Cut Diagrams, Parts Lists

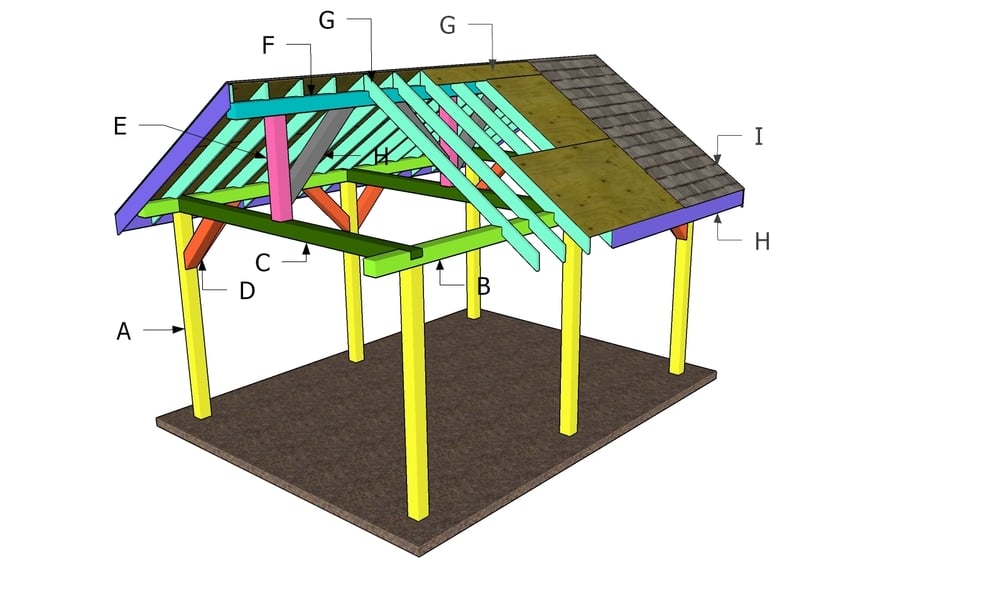

  • 3D diagrams with detailed step by step instructions

  • Full Cut & Shopping lists

  • Cut Layout Diagrams

  • Tools List, Time & Cost Estimate

  • Measurements are in imperial


All plans have been designed by Ovidiu D. The plans are for personal use ONLY. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • You'll get a PDF with step by step diagrams, instructions and a Full Cut and Shopping lists, to build a 12x16 pavilion plans. Measurements are in imperial, not metric.

  • Size
    5.77 MB
  • Length
    15 pages
  • You'll get a PDF with step by step diagrams, instructions and a Full Cut and Shopping lists, to build a 12x16 pavilion plans. Measurements are in imperial, not metric.
  • Size5.77 MB
  • Length15 pages
