8x10 Lean to Pavilion Plans

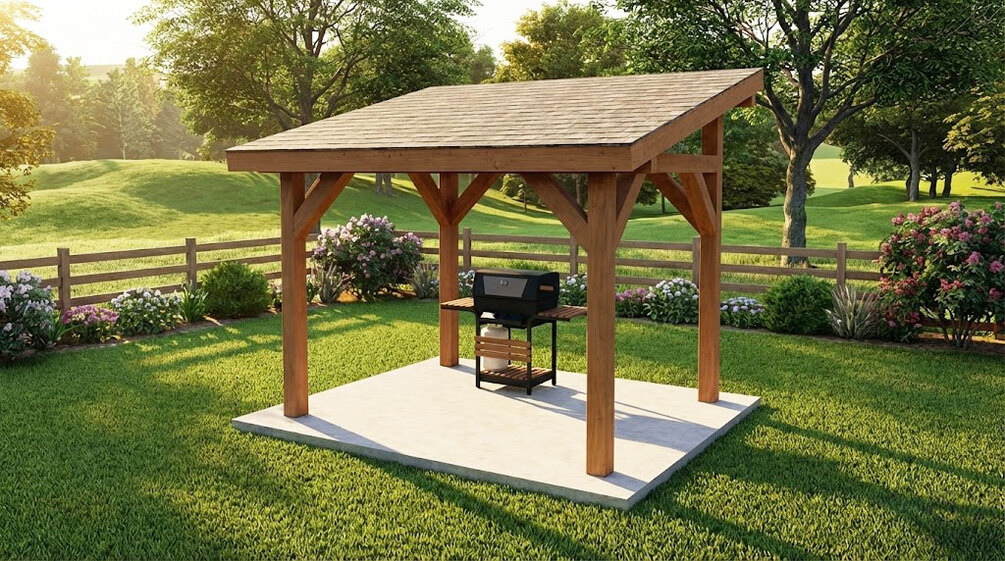

This step by step diy woodworking project is about a 8x10 wooden pavilion with lean to roof plans. I designed this small slanted pavilion with a 8x10 base, so you can cover your grill / bbq / pizza oven. This pavilion has a 6x6 structure and a lean to roof with a 3:12 pitch. This pavilion makes for a perfect bbq cover or a small area for taking dinner.

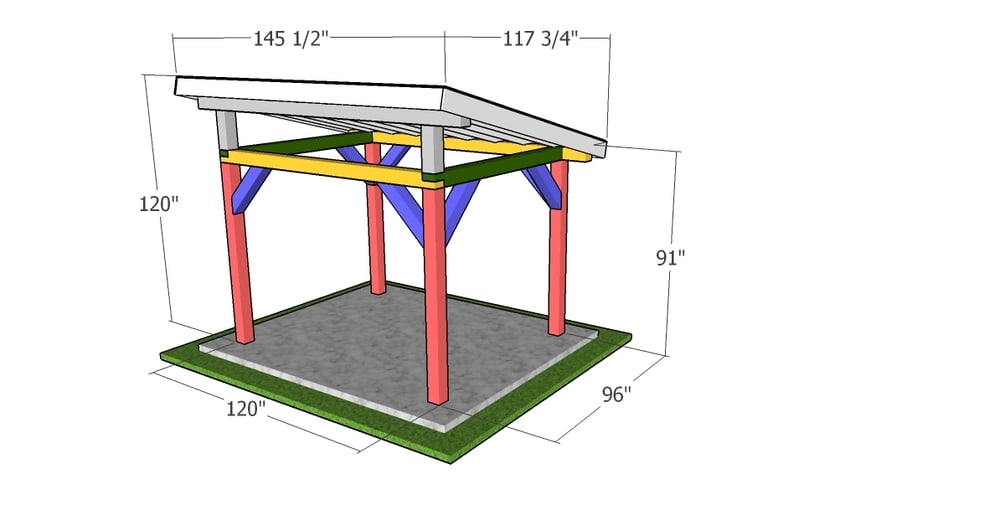

The pavilion features a roof with a 3:12 pitch with generous overhangs on all sides. The base of the pavilion is 8 ft x 10 ft. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!

The PDF file comes with:

  • Cut Diagrams, Parts Lists
  • 3D diagrams with detailed step by step instructions
  • Full Cut & Shopping lists
  • Cut Layout Diagrams
  • Tools List, Time & Cost Estimate
  • Measurements are in imperial

All plans have been designed by Ovidiu D. The plans are for personal use ONLY. MyOutdoorPlans or the its legal owners be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

  • Size1.38 MB
  • Length19 pages
