16x16 Lean to Pavilion Plans

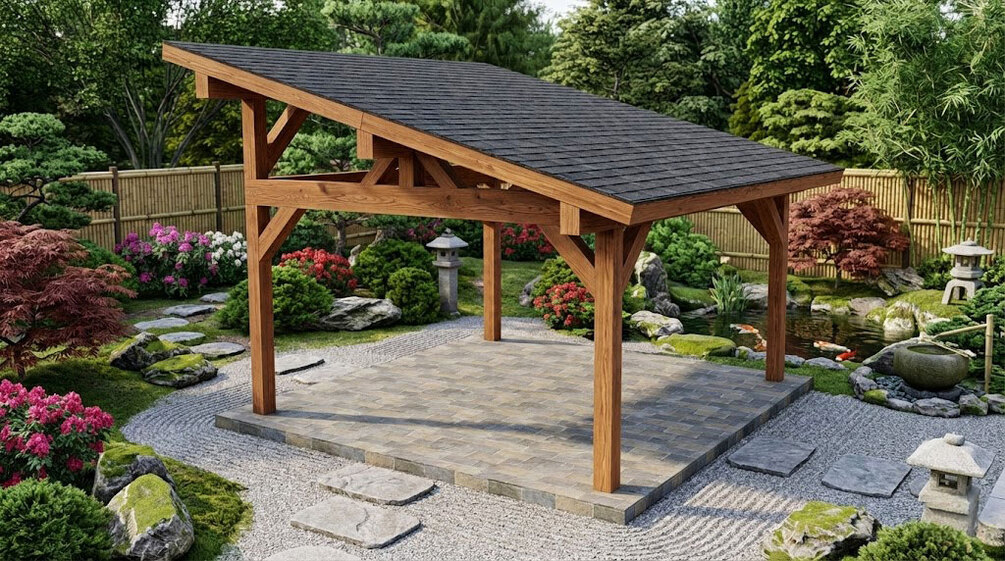

If you want to build a beautiful 16x16 outdoor pavilion with lean to roof, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a weekend. This pavilion is built on a sturdy 8x8 and 8x12 framing, that makes the 4 post structure possible.

The pavilion features a roof with a 3:12 pitch with generous overhangs on all sides. The base of the pavilion is 16'x16'. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.

Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!

*These are PREMIUM PLANS

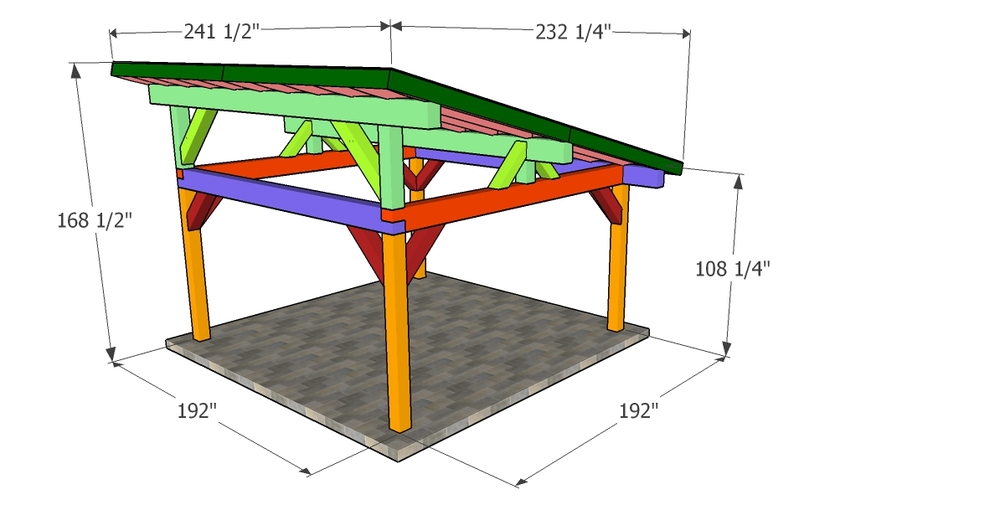

*See full dimensions in the FEATURED IMAGES.

The PDF file comes with:

• Cut Diagrams, Parts Lists
• 3D diagrams with detailed step by step instructions
• Full Cut & Shopping lists
• Cut Layout Diagrams
• Tools List, Time & Cost Estimate
• Measurements are in imperial

Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
