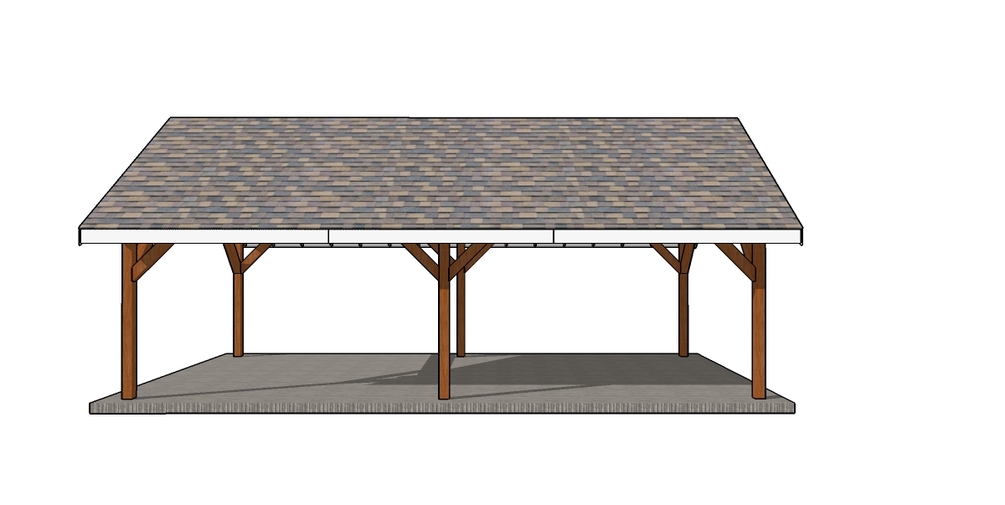

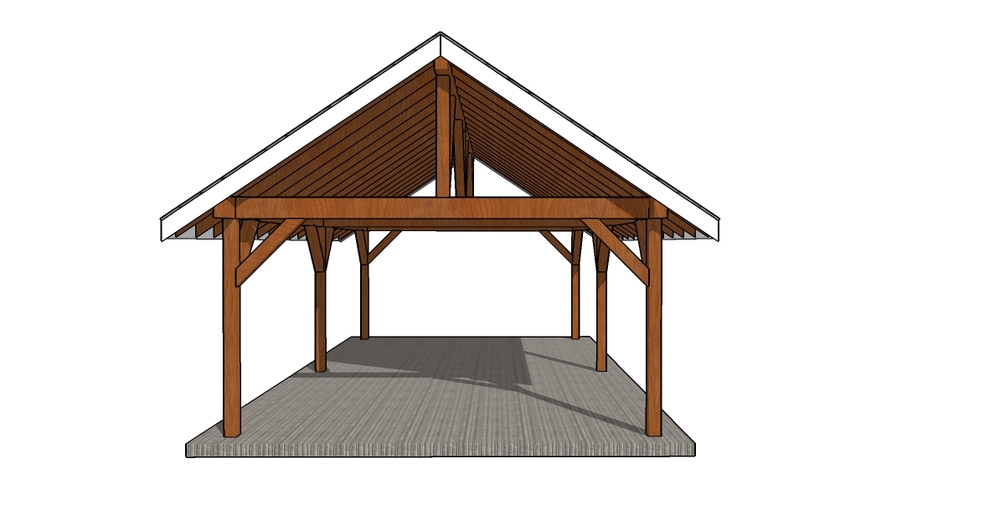

16x30 Gable Pavilion Plans
This step by step diy woodworking project is about a 16x30 gable pavilion plans. This is a large pavilion built on a sturdy 6x6 and 6x10 framing, so you can enjoy your garden and still have a roof that protects you from the sun or from the rain.
The roof for this pavilion has a pitch of 8:12 and features large opening on all sides. Make sure you take a look over the local building codes, so you comply with the regulations.
You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood.
Just a few common tools are necessary, so you don't need a fully equipped and fancy workshop to start making projects!
*This is a PREMIUM PLAN

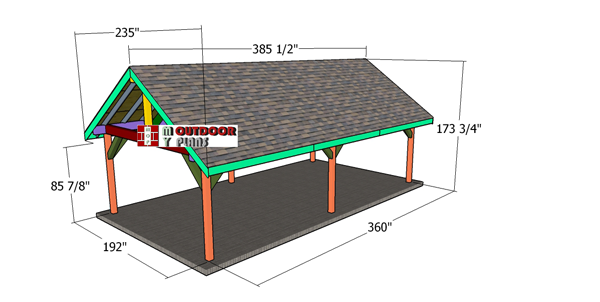

*See full dimensions in the FEATURED IMAGES.

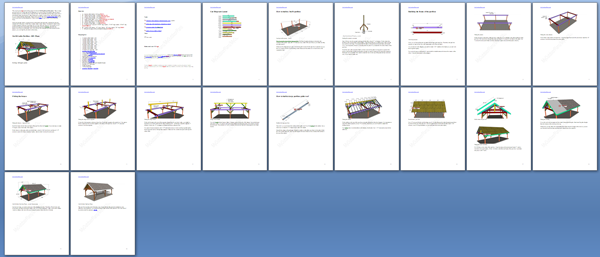

The PDF file comes with:
- Cut Diagrams, Parts Lists
- 3D diagrams with detailed step by step instructions
- Full Cut & Shopping lists
- Cut Layout Diagrams (show you how to cut the components, so you get minimal waste)
- Color Code (easily identify the components)
- Tools List, Time & Cost Estimate
- Measurements are in imperial
Measurements are in imperial. The plans are for personal use only. MyOutdoorPlans or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.
- Payment is managed by Gumroad and it is safe. Payment is secured by SSL with 128-bit encryption and processed with PCI Compliant service providers. Find out more here.
- Once payment is completed, you will receive and email from Gumroad. Inside the email you have a VIEW CONTENT button. Press the button, then Download.
