10x20 Lean to Pavilion Plans

0 ratings

If you want to build a beautiful 10x20 outdoor pavilion with a lean to roof, these premium plans with step by step 3D diagrams and instructions will help you save time, money and get the job done in a weekend. This pavilion is built on a sturdy 6x6 framing, with 2x6 rafters every 16" on center.

The pavilion features a gable roof with a 4:12 pitch and generous overhangs on all sides. Therefore the base of the pavilion has 10 ft x 20 ft. You can use pressure treated lumber for the pavilion, or invest in something weather resistant like cedar or redwood. If you add railings this will be an amazing gazebo for your backyard.

If you need to build a beautiful, sturdy and yet simple pavilion / gazebo / covered pergola, these plans will guide you through each step with lots of details. These woodworking plans are beginner friendly. This also works as a carport for a small vehicle.

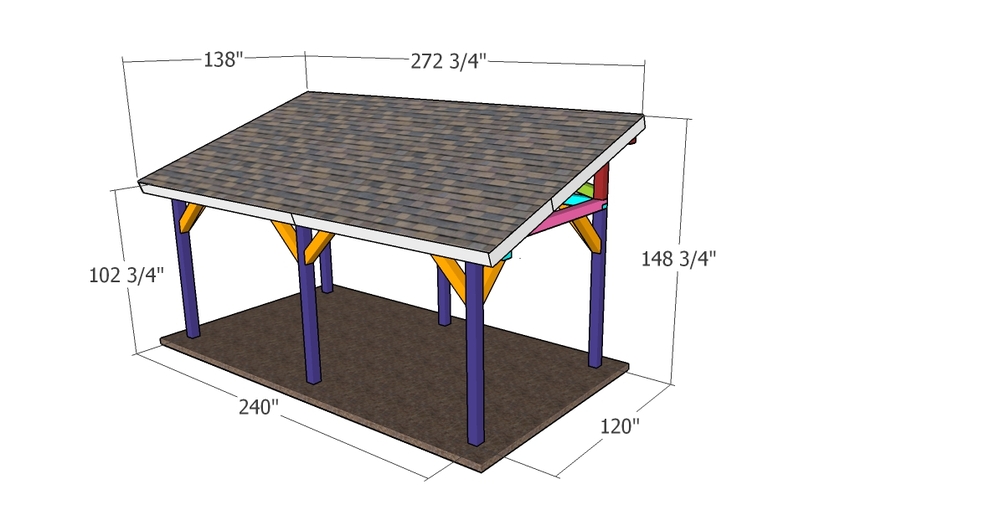

*See full dimensions in the FEATURED IMAGES.

The PDF file comes with:

  • Cut Diagrams, Parts Lists

  • 3D diagrams with detailed step by step instructions

  • Full Cut & Shopping lists

  • Cut Layout Diagrams

  • Tools List, Time & Cost Estimate

  • Measurements are in imperial

All plans have been designed by Ovidiu D. The plans are for personal use ONLY.

  • Size
    2.63 MB
  • Length
    17 pages
  • Size2.63 MB
  • Length17 pages
